Compact and robust quality motherboard for an upper mid-range PC. Easy to use for a regular assembler.

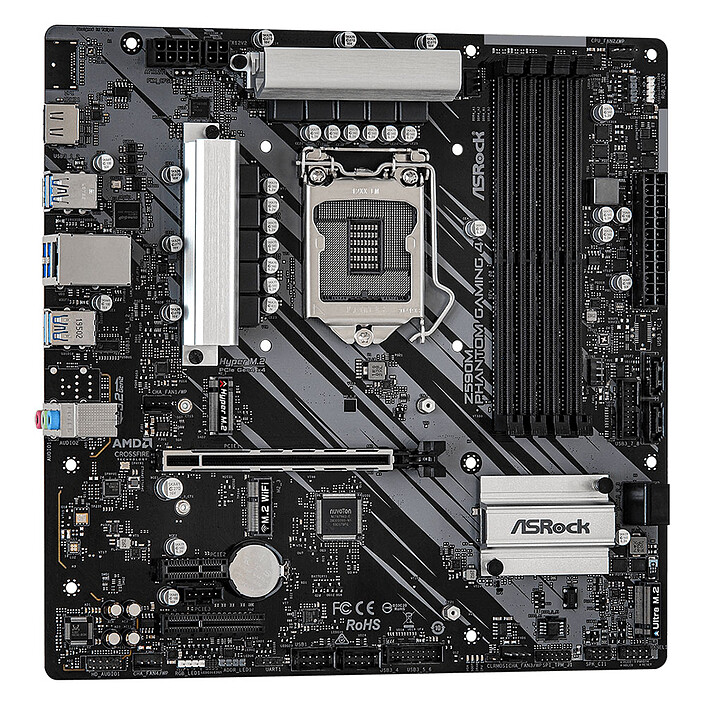

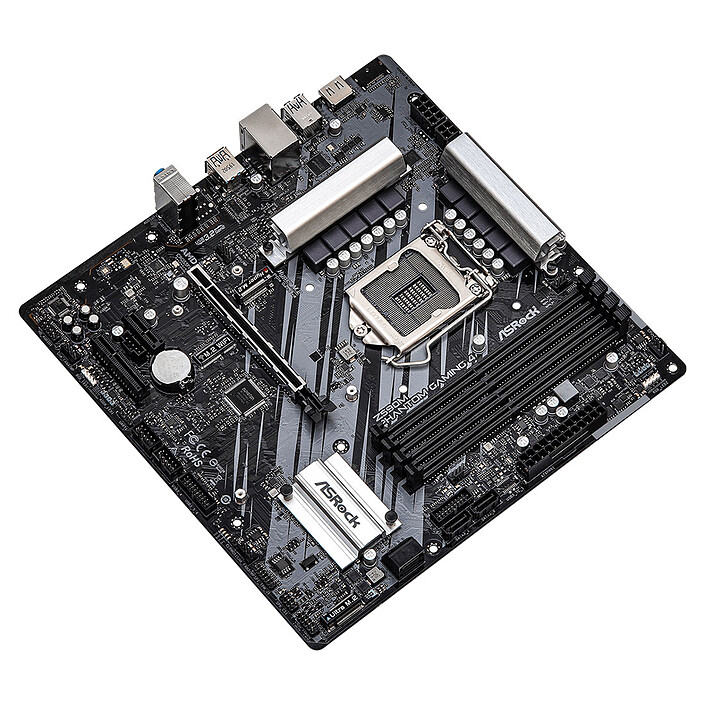

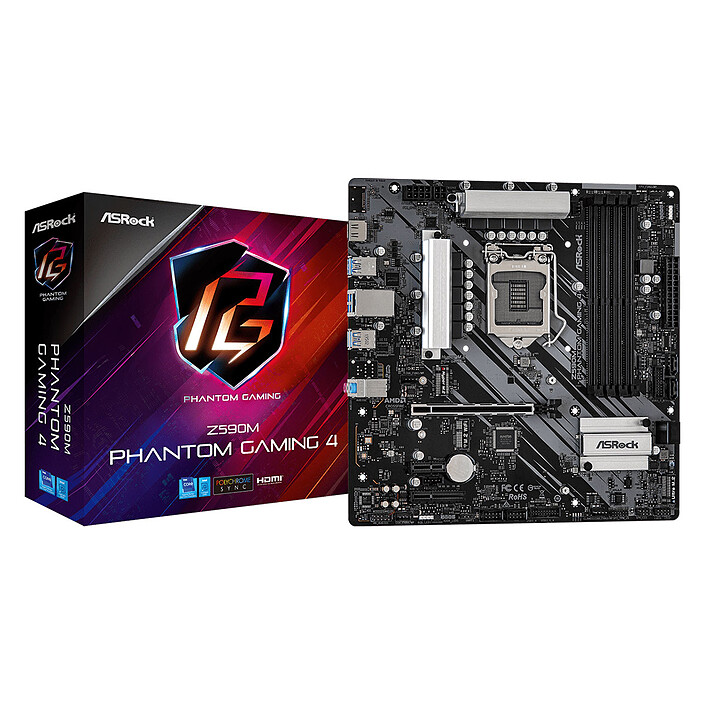

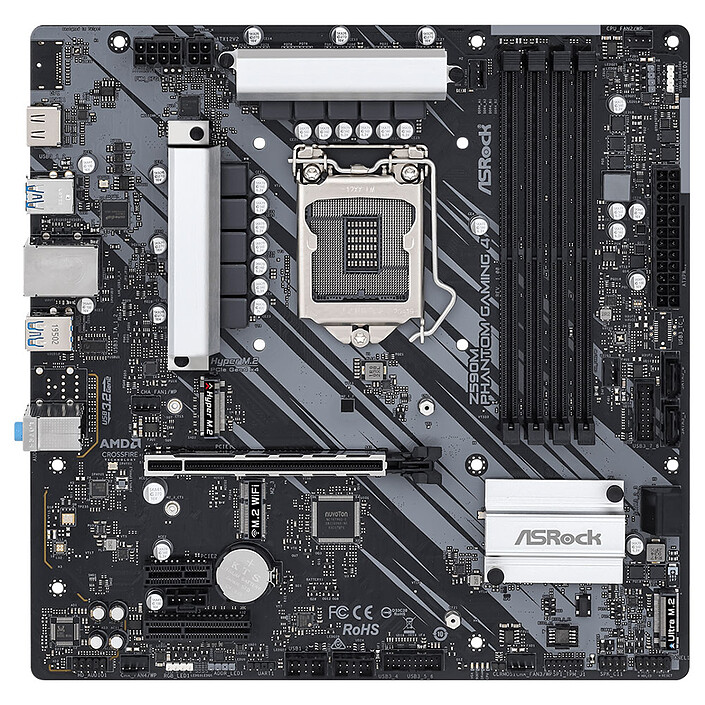

The ASRock Z590M Phantom Gaming 4 motherboard is designed to accommodate 10th and 11th generation Intel processors on LGA 1200 socket. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a powerful PC. It also supports DDR4 RAM, PCI-Express 4.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E 4. 0 drives, and USB 3.0 and USB 3.1 devices .
High-performance gaming, smooth virtual reality, and intensive multitasking - 10th-generation Intel Core processors are ultra versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
General information |
Product name |
ASRock Z590M Phantom Gaming 4 |
Brand |
ASRock | |
Model |
Z590M PHANTOM GAMING 4 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z590 Express |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 4800 MHz | |
DDR4 4666 MHz | ||
DDR4 4266 MHz | ||
DDR4 4133 MHz | ||
DDR4 4000 MHz | ||
DDR4 3866 MHz | ||
DDR4 3800 MHz | ||
DDR4 3733 MHz | ||
DDR4 2133 MHz | ||
DDR4 2400 MHz | ||
DDR4 2666 MHz | ||
DDR4 2800 MHz | ||
DDR4 2933 MHz | ||
DDR4 3200 MHz | ||
DDR4 3600 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
1 X PCI Express 3.0 16x (x4) | ||
Number and Type of slots |
3 X PCI Express 3.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel I219-V |
Network standard(s) |
10/100/1000 Mbps | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | |
1 X M.2 - PCI-E 4.0 x4 | ||
4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Supported RAID Modes |
5 | |
10 | ||
1 | ||
0 | ||
Connectivity |

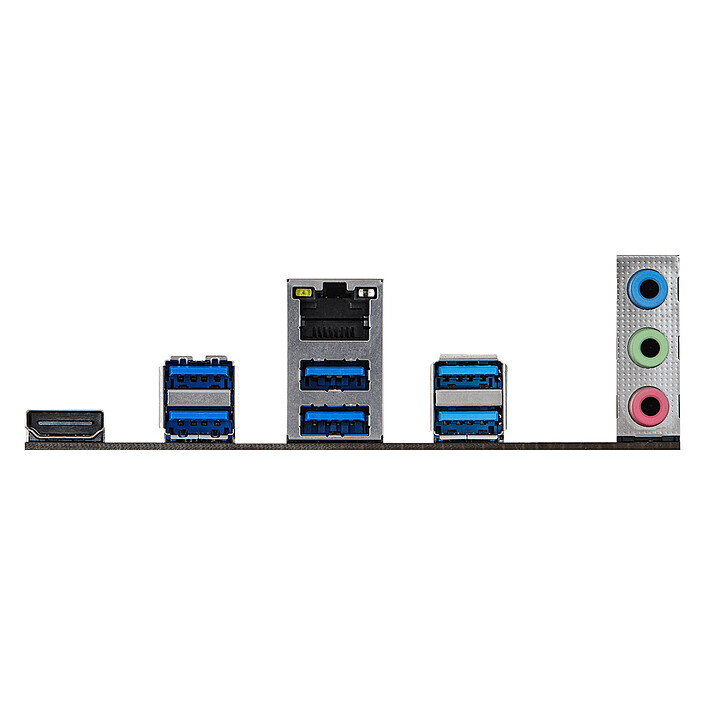

Rear panel connectors |
1 X HDMI Female |
2 X USB 3.1 | ||
4 X USB 3.0 | ||
1 X RJ45 Female | ||
3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
2 X LED RGB connector(s) | |
2 X Addressable LED RGB connector(s) | ||
TPM | ||
Front panel audio | ||
1 X +12V (Power supply P4) | ||
1 X +12V (Power supply P8) | ||
1 X ATX 24 Pin | ||
4 X Internal USB 2.0 | ||
4 X Internal USB 3.0 | ||
1 X Thunderbolt | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
