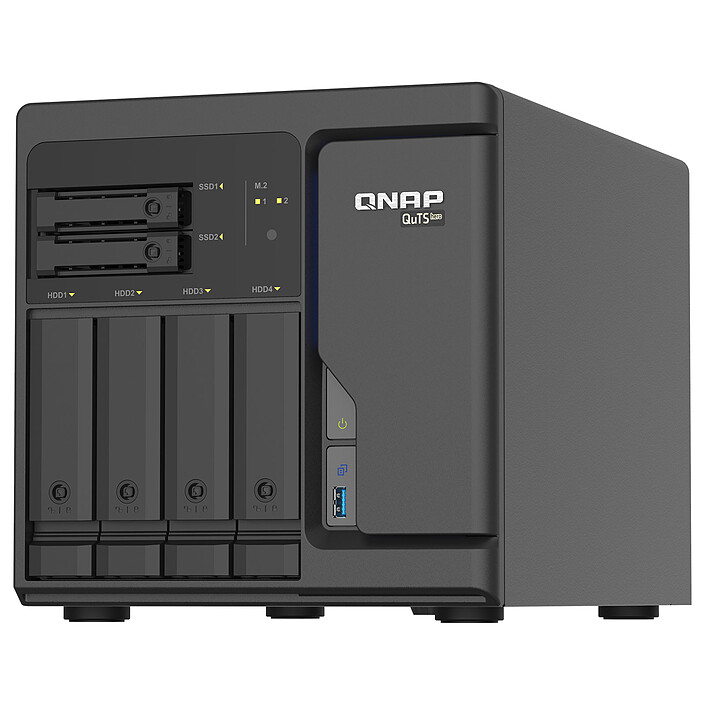

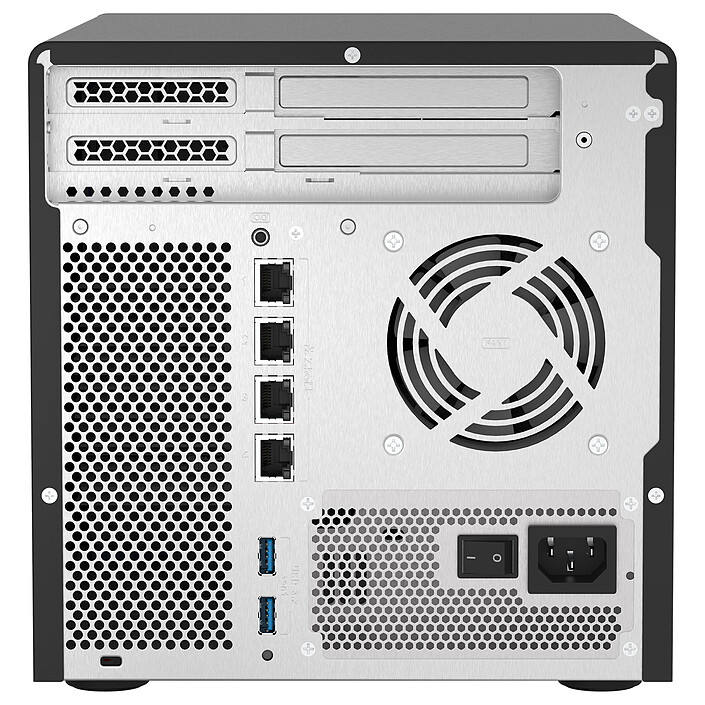

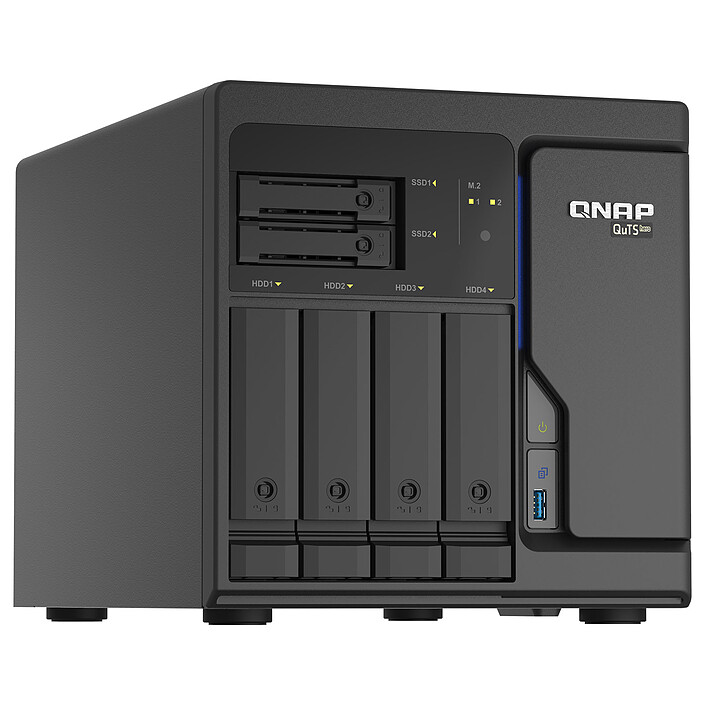

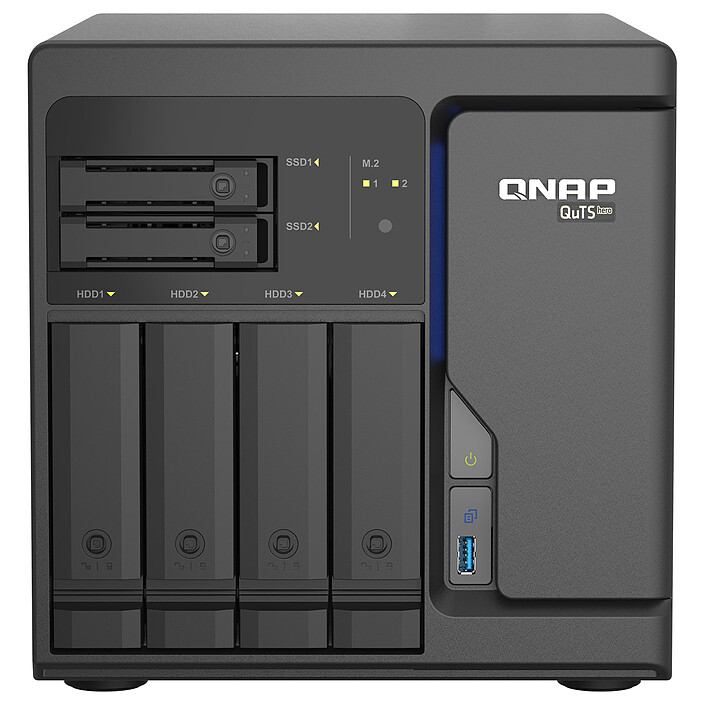

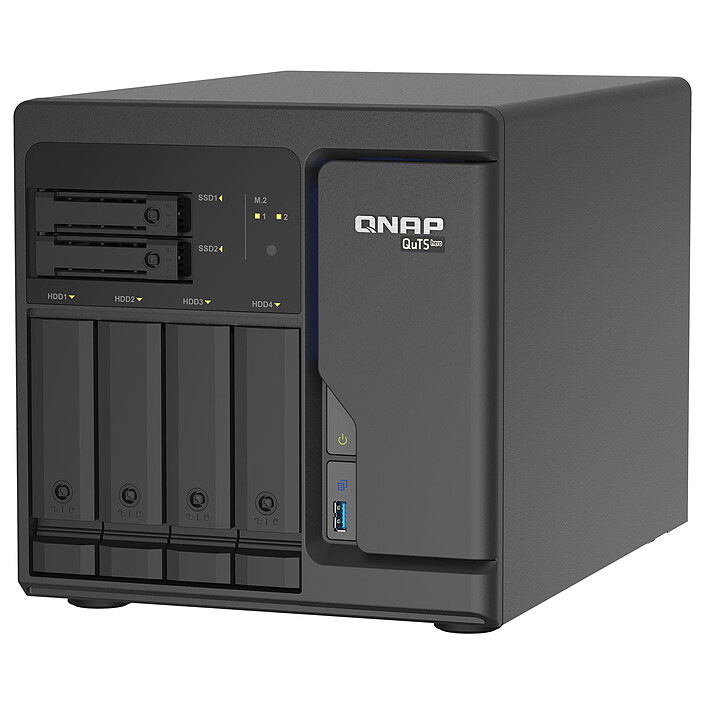

QNAP TS-h686-D1602-8G
6-bay professional NAS server (4x 2.5"/3.5" 2x 2.5") - 8 GB DDR4 ECC RAM - Intel Xeon D-1602
Last price 1 559€95
QNAP TS-h686: 6-bay NAS with 2.5 GbE network connectivity
The QNAP TS-h686 NAS offers 4 x 2.5"/3.5" bays and 2 x 2.5" SSD slots. Powered by an Intel Xeon D-1602 processor and expandable with up to 128GB of DDR4 ECC memory, the TS-h686 delivers server-grade performance with high reliability. Four 2.5 GbE LAN connectors help improve performance for bandwidth-intensive applications and reduce CPU load.
With the QTS hero operating system under ZFS, the TS-h686 ensures data integrity and supports online block-level data deduplication and compression, virtually unlimited snapshots, and real-time SnapSync. Whether for business-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TS-h686 delivers a high-performance NAS solution.
High Performance Hardware
The TS-h686 features an Intel Xeon D-1600 series processor, with up to 128GB of memory, and a redundant power supply, delivering server-grade performance and reliability for enterprise computing environmentsThe TS-h686 uses DDR4 ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is critical for mission-critical server applications.
QTS Hero Operating System
The QTS Hero operating system combines application-based QTS with a 128-bit ZFS file system to provide flexible storage management, comprehensive data protection and performance optimised to meet the complexity and performance requirements of modern computing. From storage and virtualization to collaborative multimedia workflows, the QTS hero system simplifies your critical tasks.
PCI-Express slots for expansion cards
The TS-h686 has two PCIe Gen3 slots that allow for the installation of various expansion cards to tailor the use of the NAS according to the business needs. Low-profile graphics cards can be added without the need for an additional power connector to increase virtualisation performance.
Main features :
- 6-bay NAS
- Intel Xeon D-1602 processor (Dual-Core 2.5 GHz / 3.2 GHz Turbo - 4 Threads - 3 MB Cache)
- 8 GB DDR4 ECC RAM (2 x 4 GB - 4 slots - 128 GB max.) (4 GB: RAM-4GDR4ECP0-UD-2666, 8 GB: RAM-8GDR4ECT0-UD-2666, 16 GB: RAM-16GDR4ECT0-UD-2666, 32 GB: RAM-32GDR4ECS0-UD-2666)
- 4 x 2.5"/3.5" slots + 2 x 2.5" slots + 2 x M.2 2280 PCIe 3.0 x4
- 4 x 2.5 GbE LAN ports
- 2 PCIe 3.0 x8 slots
- Compatibility list
Select your criteria
General information |
Product name |
QNAP TS-h686-D1602-8G |
Brand |
QNAP | |
Model |
TS-H686-D1602-8G | |
Processor |
CPU frequency |
2.5 GHz |
Memory size |
8 GB | |
Memory type |
DDR4 ECC | |
Network |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) |
Network connector(s) |
4 X 2.5 Gigabit Ethernet - RJ45 Female | |
Wake On LAN |
Yes | |
DLNA certification |
Yes | |
Storage |
Capacity |
0 GB |
Internal interface |
2 X M.2 - PCI-E 3.0 x4 | |
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Hard drive format |
2 X 2" 1/2 | |
| 4 X 3" 1/2 | ||
| 2 X M.2 | ||
Hard drive |
Without hard drive | |
Number of discs |
0 | |
Max number of discs |
6 | |
RAID supported |
Yes | |
Supported RAID Modes |
Single Disk | |
| 0 | ||
| 1 | ||
| 10 | ||
| 5 | ||
| 50 | ||
| 6 | ||
| JBOD | ||
File system |
ZFS | |
Connector(s) |
2 X PCI Express 3.0 x4 | |
| 3 X USB 3.0 | ||
Compatibility |
Server functions |
Web |
| Virtualization | ||
| Video surveillance | ||
| FTP | ||
| Multimedia | ||
| Photo | ||
Windows ADS |
Yes | |
iSCSI (SCSI encapsulation) |
Yes | |
Scalable |
Yes | |
Supported OS |
Microsoft Windows 8 | |
| Microsoft Windows 7 | ||
| Microsoft Windows 10 | ||
| Windows Server 2019 | ||
| Windows Server 2016 | ||
| Windows Server 2012 R2 | ||
| Windows Server 2012 | ||
| Windows Server 2008 R2 | ||
| Linux | ||
| Mac OS X 10.10 or higher | ||
Physical characteristics |
Rackable |
No |
Sound level |
18.6 dB | |
Consumption |
61.115 W | |
Width |
224.9 mm | |
Height |
231.9 mm | |
Depth |
319.8 mm | |
Weight |
7.27 kg | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all QNAP products
Product referenced on 29 Sep 2020
