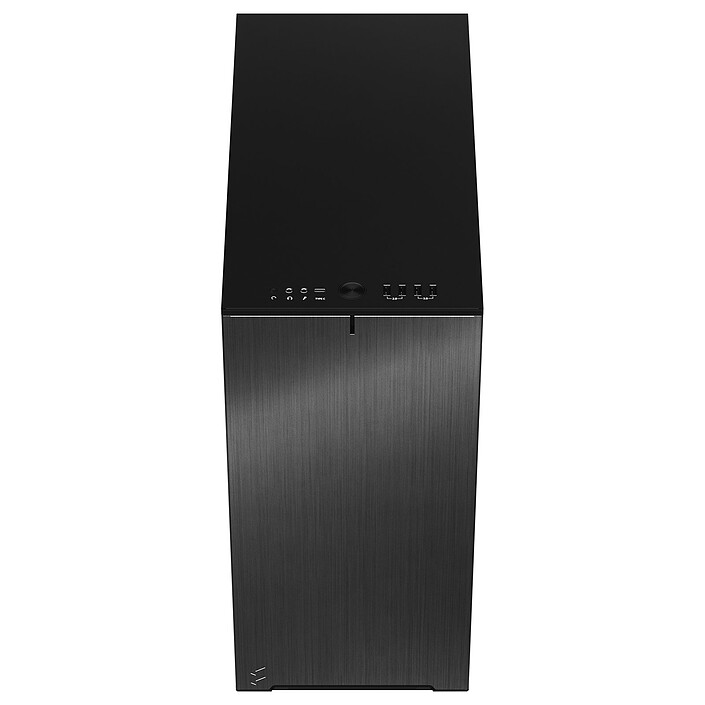

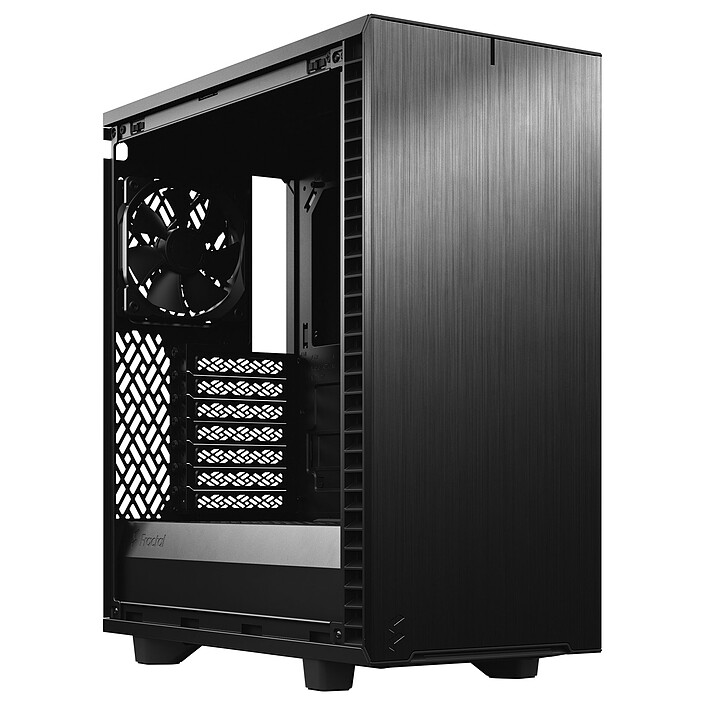

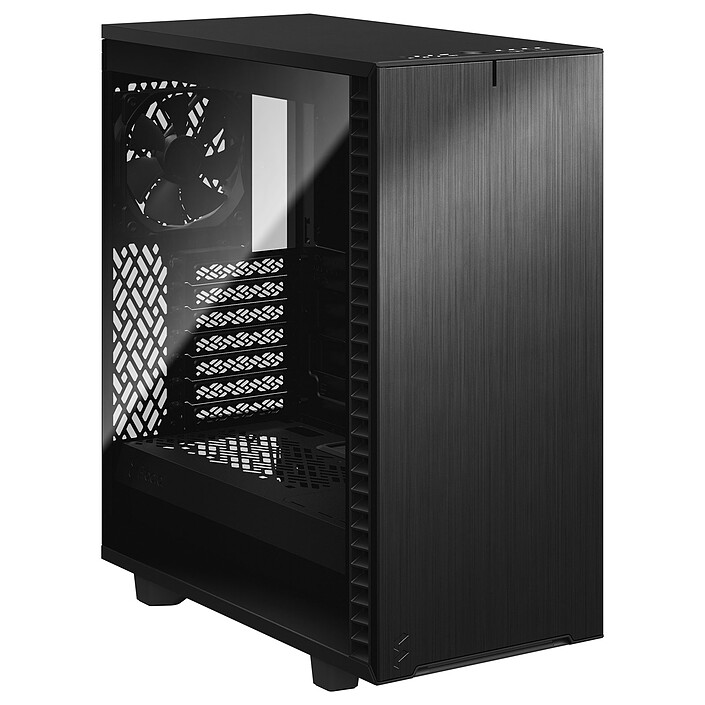

Fractal Design Define 7 Compact TG Dark
Medium tower case with tempered glass panel
Pictures may differ from actual products
Steel and aluminium serve your components perfectly while providing a quiet start-up for your Define 7 Compact by Fractal Design. Create the configuration of your dreams and get the performance you expect!
Medium tower case with tempered glass panel
Define 7 Compact: Versatility and silence
Steel and aluminium serve your components perfectly, while providing a whisper-quiet start-up for your Fractal Design Define 7Compact case. Create the setup of your dreams and get the performance you expect! Enjoy high quality design, extensive cooling and storage capabilities and full connectivity on top of your mid-tower case.
Silence, performance, elegance
With its large interior volume and robust, sound-absorbing materials, the Fractal Design Define 7 Compact mid-tower case offers a perfect combination of advanced design and user comfort. It accommodates an ATX motherboard, a 200mm power supply and a 315mm graphics card.
You can easily install your components, configure your machine according to your needs and find numerous slots for 3.5" or 2.5" disks. On the top, 5 USB ports await you, including a USB 3.1 Type C connector for fast charging.
Optimised air for your components
For the well-being of your equipment, the Define 7 Compact has optimised cooling with no less than seven fan slots. Two fans are pre-installed to start your Fractal Design experience in the best possible conditions. Of course, this model is compatible with a watercooling system to meet all your needs.

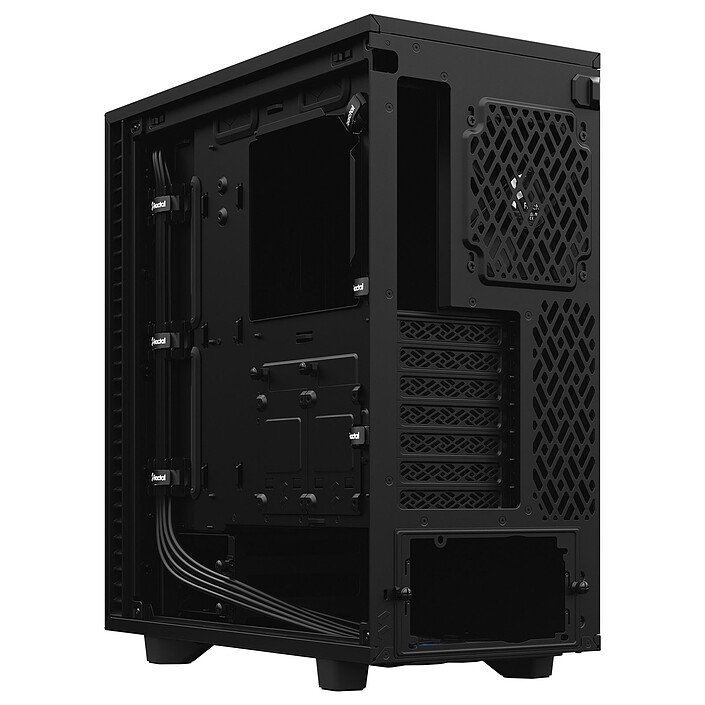

Finally, a large space to place your cables is available to offer a professional quality cable management to all users!
Main features :
- Motherboard compatibility: ATX, Micro ATX, Mini ITX
- Soundproof steel panel, tempered glass panel, anodised aluminium front panel
- Two top panels available: solid or airflow
- Available bays: 2 x 3.5/2.5" internal trays (included) + 2 x 2.5"
- Up to 14 HDD/SSD slots + 4 SSD slots via optional trays and plates
- Power supply compatibility: up to 200 mm long
- Maximum length of graphics card: 341 mm, 360 mm without front fan
- Fan compatibility: up to 169 mm high
- 7 fan slots 120 mm or 4 x 140 + 2 x 120 mm (2 Dynamic X2 GP fans included)
- Watercooling compatibility: 120mm (rear) / up to 280/360mm (front) / up to 240mm (top)
- Connectors: USB 3.1 Type C + 2 x USB 3.0 + 2 x USB 2.0 + Audio I/O
Select your criteria
General information |
Product name |
Fractal Design Define 7 Compact TG Dark |
Brand |
Fractal Design | |
Model |
FD-C-DEF7C-02 | |
Main characteristics |
Graphic card max. length |
341 mm |
Max height CPU fan |
169 mm | |
Power supply max. length |
200 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
| Office | ||
Material |
Tempered glass | |
| Steel | ||
| Aluminum | ||
Motherboard format |
ATX | |
| Micro ATX | ||
| Mini ITX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
Black | |
Front color |
Black | |
Dust filters |
4 | |
Integrated display |
No | |
Glass |
Yes | |
Tempered glass |
Yes | |
Fish tank (panoramic view) |
No | |
LED RGB |
No | |
ARGB LED |
No | |
Water cooling compatible |
Yes | |
Motherboard connector location |
Standard connectors (on the motherboard) | |
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of visible 3.5" slots |
0 | |
Number of invisible 3.5" slots |
0 | |
Number of 2.5" slots |
2 | |
Number of 2.5"/3.5" slots |
2 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Front connectivity |
Location of expansion ports |
Top |
Connector(s) available |
Headphone (3.5mm Jack Female) | |
| Microphone (3.5mm Jack Female) | ||
| 2 X USB 2.0 | ||
| 2 X USB 3.0 | ||
| 1 X USB 3.1 Type C | ||
Cooling |
Fan(s) included |
Yes |
Number of rear fan(s) slots |
1 X 120mm | |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
2 X 140mm | |
| 3 X 120mm | ||
Quantity of front fan(s) supplied |
1 | |
Number of side fan(s) slots |
None | |
Number of above fan(s) slots |
2 X 120 or 140mm | |
Quantity of above fan(s) supplied |
0 | |
Number of underneath fan(s) slots |
1 X 120mm | |
Quantity of underneath fan(s) supplied |
0 | |
Water cooling |
AIO radiator compatibility |
360mm radiator |
| 280mm radiator | ||
| 240mm radiator | ||
| 140mm radiator | ||
| 120mm radiator | ||
Front AIO slot(s) |
120mm radiator | |
| 140mm radiator | ||
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Above AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
210 mm |
Height |
474 mm | |
Depth |
427 mm | |
Weight |
8.76 kg | |
Volume |
39.3 l | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 3 Jun 2020
