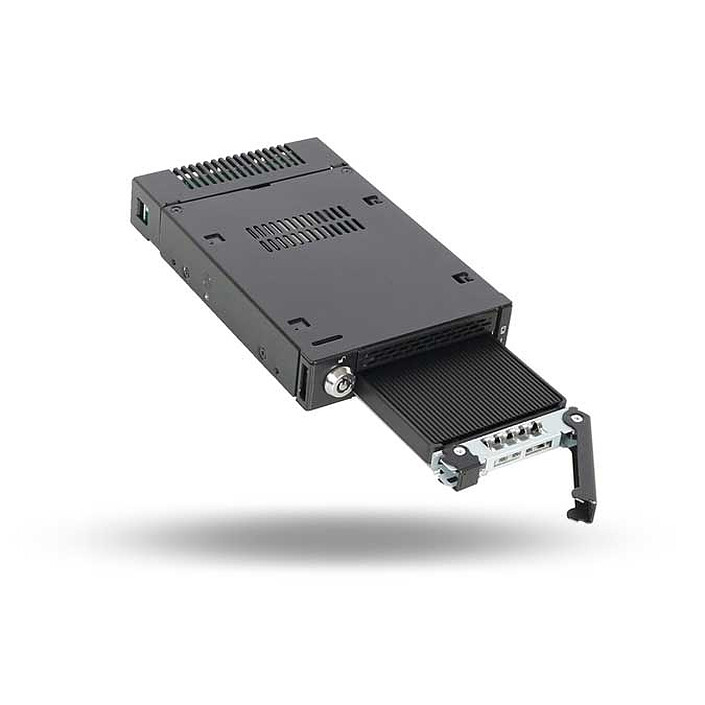

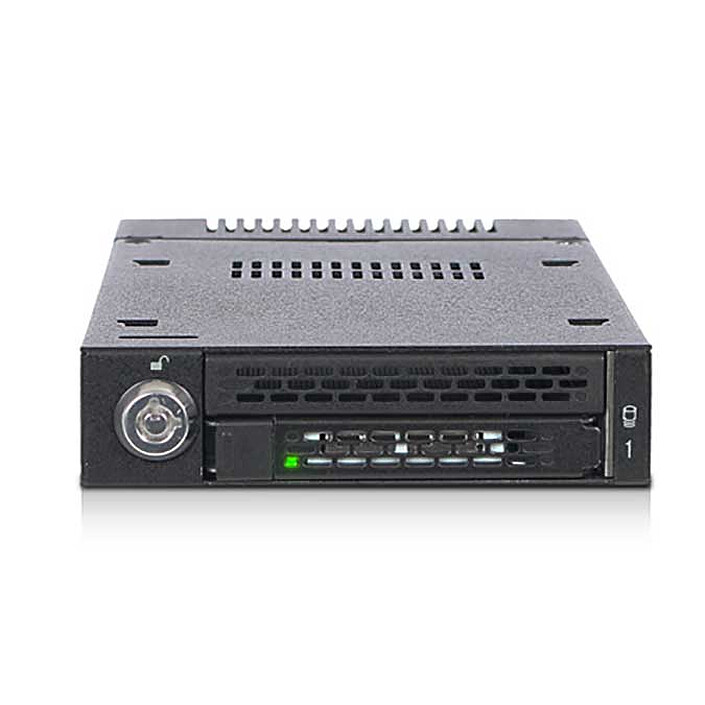

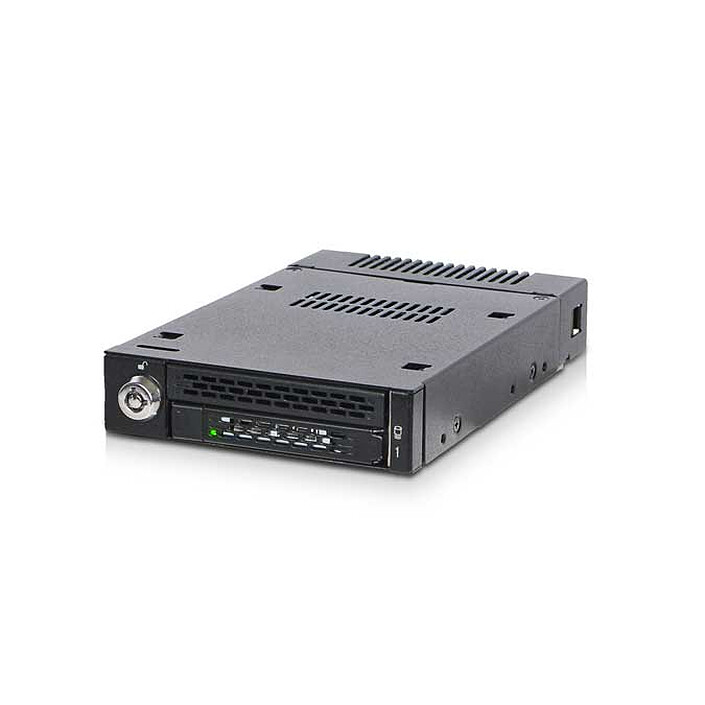

ICY DOCK ToughArmor MB833M2K-B
Removable NVMe PCIe M.2 SSD Rack for 3.5" external drive bay
Last price 149€95
Enjoy the convenience of a removable M.2 NVMe SSD rack
ICY DOCK is pleased to introduce the ToughArmor MB833M2K-B, the world's first rugged M.2 PCIe NVMe SSD removable rack that can be mounted without the need for tools. Your M.2 NVMe SSD no longer needs to be installed on a motherboard or riser card with a tiny screw, but can now be installed and easily accessed from the front of your computer! The ToughArmor MB833M2K-B will ease the pain of users who find it difficult to install M.2 drives, and will allow for easy maintenance and upgrading of your system. The ToughArmor MB833M2K-B supports ultra-fast PCIe x4 transfer speeds of up to 32 GB/s via MiniSAS HD and accepts all standard M.2 drive lengths from 30 mm to 110 mm (2230, 2242, 2260, 2280, 22110). In addition, while working with a number of ventilation holes around the enclosure, each drive platter is equipped with a high-efficiency aluminum heatsink to ensure that all M.2 NVMe SSDs remain at their optimal temperature even when used to their full potential. Ultimately, your drives will be well protected in this all-metal rack with a key lock to prevent unauthorized physical access.
Easier installation for greater efficiency
A typical M.2 drive is usually installed on a motherboard and secured by a tiny screw. Its physical installation or removal can be very tedious and time-consuming. However, with ICY DOCK's ToughArmor MB833M2K-B, your M.2 drive sits on the front of a computer case and makes installing and removing M.2 NVMe SSDs easier and more efficient.
Supports all lengths of M.2 SSDs
The adjustable M.2 tray slides to accommodate all standard M.2 PCIe NVMe SSD lengths , including 2230 (30mm), 2242 (42mm), 2260 (60mm) and 22110 (110mm). The locker fits into the screw hole of the SSD to secure the drive without screws or tools, eliminating the need for small, easily lost screws while protecting your drive from vibration and motion damage.
True performance and efficient cooling
The ToughArmor MB833M2K-B uses the NVMe U.2 connector to support the full NVMe bandwidth specification of 32 Gbps, more than 5 times faster than the previous SATA standard, making it ideal for data-intensive applications such as enterprise servers, data centres and photography and media professionals.
The robust, all-metal chassis, tray and mounting bracket ensure the ICY DOCK ToughArmor MB833M2K-B has a long service life and helps dissipate heat. An anti-vibration mechanism built into the chassis reduces noise and protects against environmental damage.

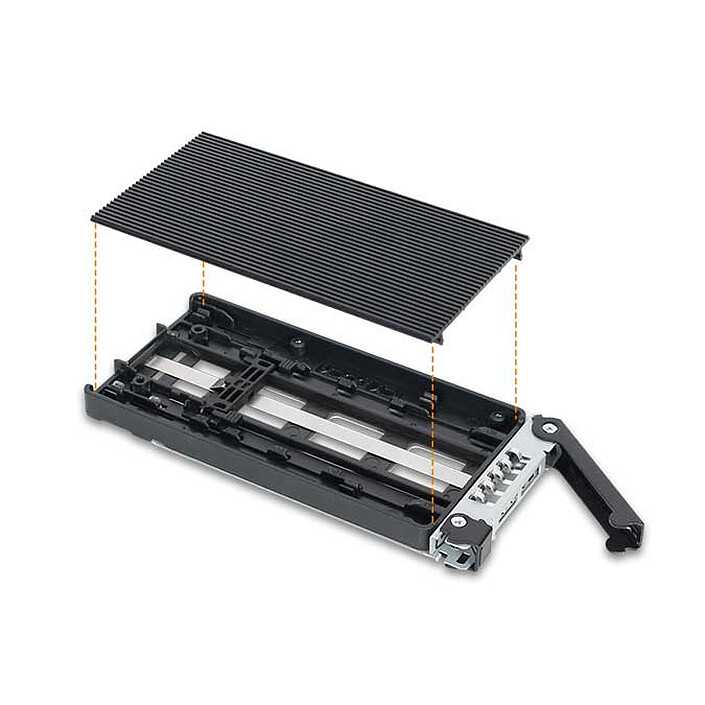

The uniquely designed platter has an integrated aluminium heat sink with thermal pads included for maximum passive heat dissipation. This heat is then dispersed through the cleverly placed ventilation holes on all sides, which work with your computer's cooling system to protect your drives from overheating damage, even under load.
Main features:
- Fits 1x NVMe M.2 SSD of all lengths, 30mm 2230, 42mm 2242, 60mm 2260, 80mm 2280, and 110mm 22110
- Securely holds all drive lengths
- Fits into any standard 3.5" external floppy or device bay

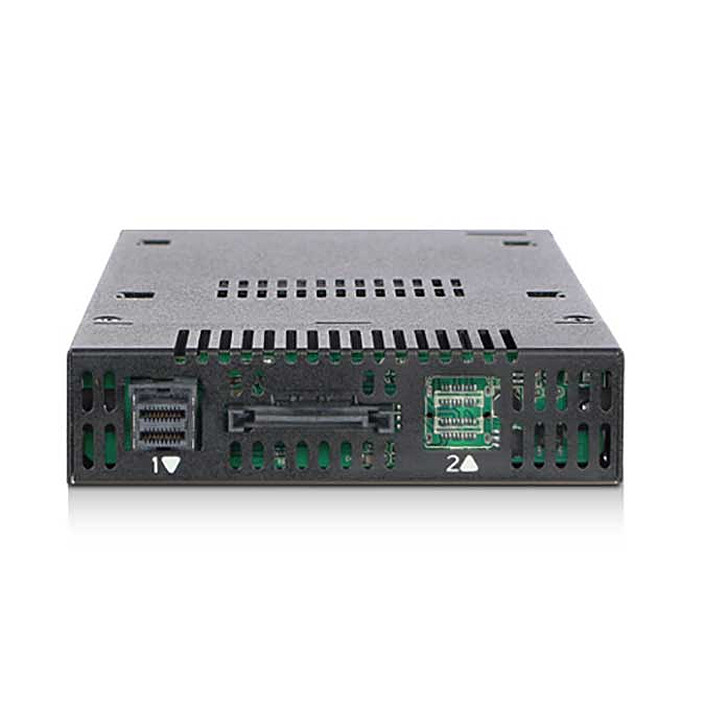

- Uses a miniSAS HD port (SFF-8643), requires an NVMe host to connect
- Supports full 32 GB/s NVMe bandwidth specification
- Robust metal design meets flammability requirements
- Integrated heat sink and large fan for excellent passive cooling
- 2-segment key lock for additional physical security
- Eagle hook tray lock securely holds tray inside the rack
- EMI grounding - protects hard edges from electrical damage
- Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
- Active Power Technology (APT) saves power by shutting down the unit when no drives are installed
- Dimensions (L x W x H): 163 x 101 x 26 mm
- Net weight: 479 g
- 3 years warranty
