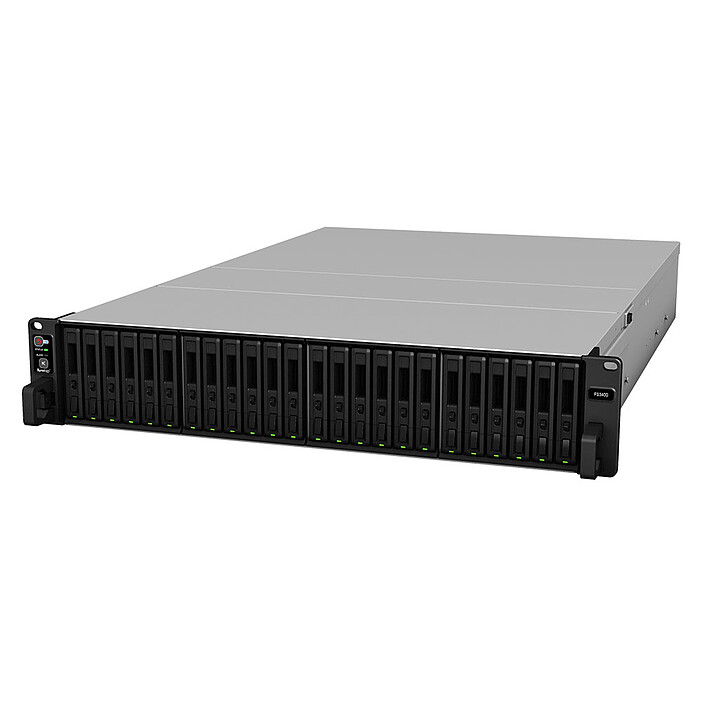

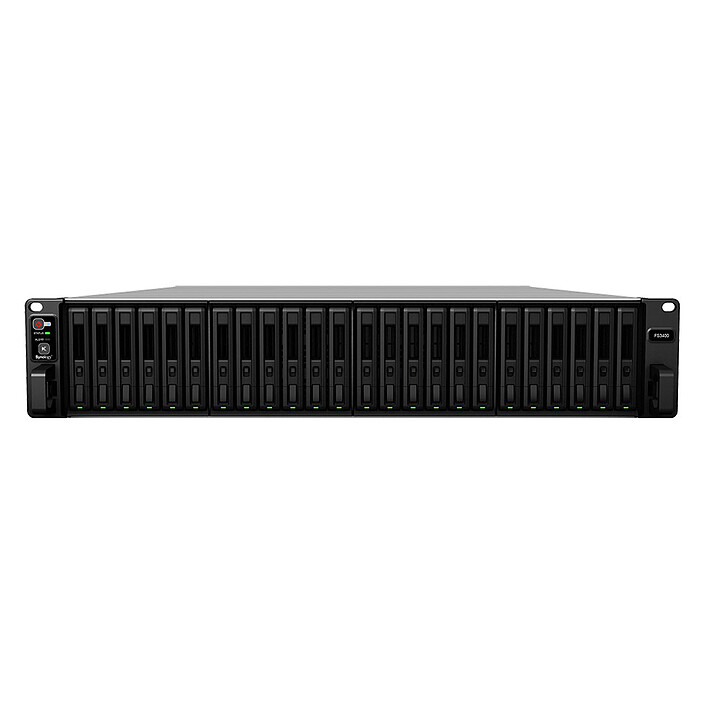

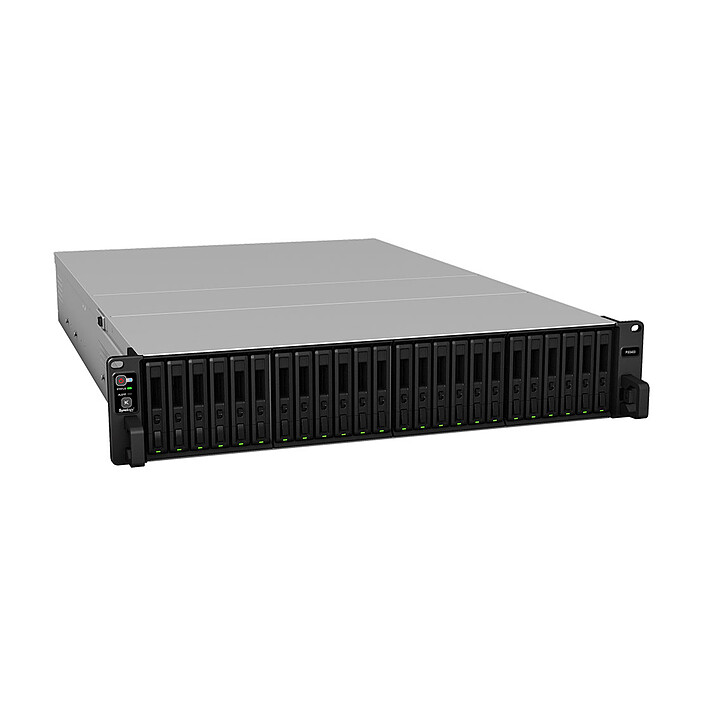

Synology FlashStation FS3400
24 bay 2.5" SAS 12 Gbps / SATA 6 Gbps NAS server - Intel Xeon D-1541 8-Core 2.1 GHz - 16 GB DDR4 ECC RAM
Last price 6 855€95High Performance NAS for Professionals
The Synology FlashStation FS3400 24-bay 2.5" SAS/SATA features an 8-core CPU with AES-NI hardware encryption engine, 16GB DDR4 ECC RAM (128GB max.), four 1GbE LAN ports, two 10GbE ports, and one PCIe 3.0 x8 expansion card slot.
The FlashStation FS3400 includes multiple backup applications to protect your important data on all devices. It features an intuitive user interface and uses durable storage technologies. Featuring enhanced endurance SSD arrays, simplified data mirroring, and various virtualization deployments, the FS3400 leverages Synology's exclusive F1 RAID technology, Synology High Availability, and advanced iSCSI storage, making it an ideal entry-level flash storage.
High Performance Scalable Storage
Equipped with an 8-core Intel Xeon CPU and 16GB DDR4 ECC RDIMM (expandable up to 128GB), the FS3400 delivers over 137,000 iSCSI 4K random write IOPS in an aggregated 10 GbE environment. With two built-in 10 GbE and four built-in 1 GbE Ethernet ports for high data transmission bandwidth, a PCIe 3.0 slot for an additional 25/40 GbE network interface card, expandable storage up to 72 drives with support for SATA and SAS SSDs, the FS3400 delivers optimal performance.
Ideal backup solution
The FS3400 includes multiple backup applications to protect your important data on all devices. It features an easy-to-use user interface and durable storage technologies.
- Active Backup for Business centralises backup tasks for virtual machines, Windows computers, servers and rsync/SMB file servers. Fast and reliable recovery options ensure that running services, virtual machines and files are immediately available when needed.
- Active Backup for Office 365/G Suite is an on-premises backup solution for public clouds with a centralized dashboard. With single instance and block-level deduplication technology, it allows you to maximise storage efficiency.
- Hyper Backup fully backs up your data to a local shared folder, external device, another Synology NAS server, rsync server, or public cloud service to ensure data security.
- Synology Drive Client backs up your Windows, Mac, and Linux desktop devices to protect important computer files.
- Synology C2 Backup is a public cloud service provided by Synology. When you use Hyper Backup to back up your data to Synology Cloud2 (Synology C2), you ensure the security and availability of your data in case of disaster.
NEXT-GENERATION FILE SYSTEM
The Btrfs file system uses advanced storage technologies and optimized snapshots to avoid data corruption and reduce maintenance costs. While ensuring a high level of data integrity, it also provides flexible and efficient data protection and recovery tools.
- Flexible user quota/shared folder control provides complete quota control over all user accounts and shared folders
- Snapshot Replication provides storage-efficient and programmable data protection with system-wide backups of 1024 shared folders and 65,000 snapshots
- Folder or file level data recovery makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention
A powerful collaborative solution
Use the collaborative suites on your FS3400 to build a private cloud, improve teamwork, and increase productivity.
- Synology Drive allows you to access data and files on your FS3400 through a unified portal and help you perform cross-platform synchronization. You can also install the Synology Office online editor and collaborate with other users on documents, spreadsheets and slides.
- Synology MailPlus allows businesses to set up private and reliable mail servers with its high-availability design. It provides your employees with an intuitive web client to manage their emails and increase productivity.
- Synology Calendar allows you to manage team calendars and easily organize daily tasks. You can also sync event information to your CalDAV clients, so you can view your calendars anywhere, anytime.
- Synology Chat is a web-based application that enables instant and secure conversations. It optimizes internal business communications with powerful interaction and information management features.
Simplified Virtualization Deployment
SynologyVirtual Machine Manager adds unlimited capabilities to your NAS. You can configure and run multiple virtual machines including Windows, Linux, and Virtual DSM on your NAS to test new software versions in a sandbox environment, isolate your customers' machines, and increase the flexibility of your FS3400 with reduced costs for both deployment and hardware maintenance.
Synology's iSCSI storage system fully supports most virtualization solutions to help increase work efficiency with a simple management interface. The integration of VMware vSphere 6.5 and VAAI offloads storage operations and maximizes computational efficiency. Windows Offloaded Data Transfer (ODX) process accelerates data transfer and migration rates, while OpenStack Cinder support transforms your FS3400 model into a block storage system.
Key Features :
- Intel Xeon D-1541 processor (Octo-Core 2.1 GHz / 2.7 GHz Turbo - 12 MB Cache)
- Memory: 16 GB DDR4 ECC (1 x 16 GB - 4 Slots - 128 GB max.) (16 GB: D4RD-2666-16G, 32 GB: D4RD-2666-32G)
- 24 2.5" SAS 12 Gbit/s / SATA 6 Gbit/s bays (24 additional bays with 2 x RX1217sas, 72 with 2 x RX2417sas)
- 1 PCIe 3.0 x8 slot compatible with E10G17-F2 / E10G18-T1 / E10G18-T2 network cards
- Network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
- File protocols: CIFS, AFP, NFS, FTP, WebDAV
- External file systems: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT(with additional license purchase)
- Virtualization: VMware vSphere 6.5, Microsoft Hyper-V, Citrix, OpenStack
- Synology MailPlus / MailPlus Server: 5 licenses included (1,100 users max.)
- Synology Office: max. 3400 users
- Maximum number of IP cameras: 100(2 licenses included)
- Virtual Machine Manager: 16 machines recommended(1 licence included)
- Rails Kit: RKS1317(not included)
- Compatible with VisualStation VS360HD and VS960HD
- 5-year warranty by Synology
General information |
Product name |
Synology FlashStation FS3400 |
Brand |
Synology | |
Model |
FS3400 | |
Processor |
CPU frequency |
2.1 GHz |
Memory size |
16 GB | |
Memory type |
DDR4 ECC | |
Network |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) |
10/100/1000 Mbps | ||
Network connector(s) |
2 X 10 Gigabit Ethernet - RJ45 Female | |
4 X Gigabit Ethernet - RJ45 Female | ||
Wake On LAN |
Yes | |
DLNA certification |
No | |
Storage |
Capacity |
0 GB |
Internal interface |
Serial ATA 6Gb/s (SATA Revision 3) | |
SAS 3.0 12Gb/s | ||
Hard drive format |
2" 1/2 | |
Hard drive |
Without hard drive | |
Number of discs |
0 | |
Max number of discs |
24 | |
RAID supported |
Yes | |
Supported RAID Modes |
0 | |
1 | ||
10 | ||
5 | ||
6 | ||
F1 | ||
JBOD | ||
File system |
Btrfs | |
Ext4 | ||
Connector(s) |
2 X USB 3.0 | |
1 X PCI Express 3.0 x4 | ||
Compatibility |
Server functions |
FTP |
Printing | ||
Multimedia | ||
Photo | ||
Video surveillance | ||
Web | ||
Windows ADS |
Yes | |
iSCSI (SCSI encapsulation) |
Yes | |
Download without PC |
No | |
Scalable |
Yes | |
Supported OS |
Mac OS X 10.11 or higher | |
Microsoft Windows 10 | ||
Microsoft Windows 8.1 | ||
Microsoft Windows 8 | ||
Microsoft Windows 7 | ||
Physical characteristics |
Rackable |
Yes |
Sound level |
57 dB | |
Consumption |
313.84 W | |
Width |
430.5 mm | |
Height |
88 mm | |
Depth |
692 mm | |
Weight |
14.9 kg | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all Synology products
Product referenced on 17 Oct 2019
For the moment, there are no customer reviews.Write a review
