Pictures may differ from actual products

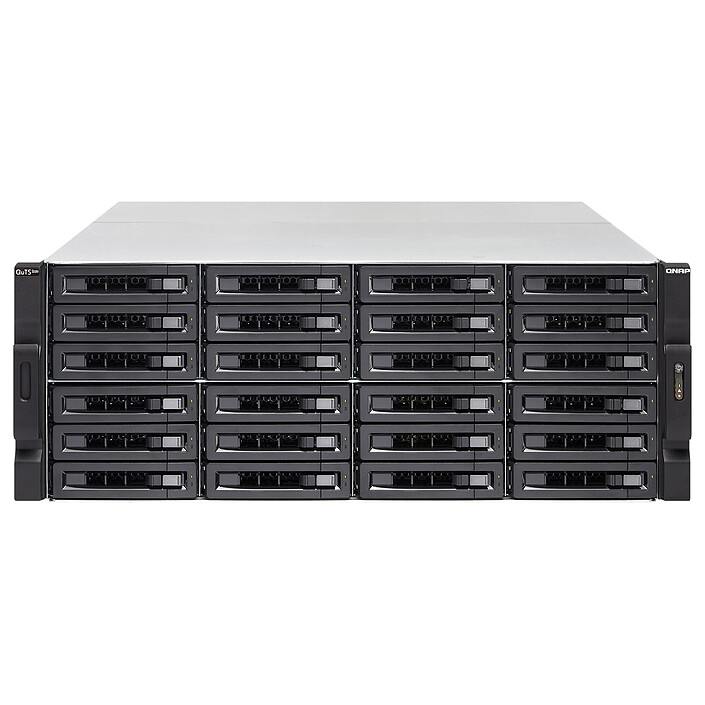

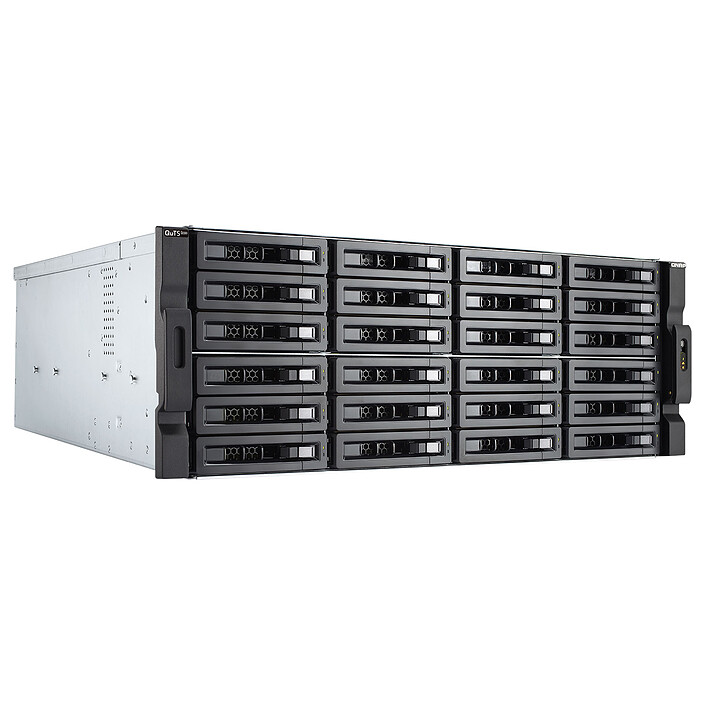

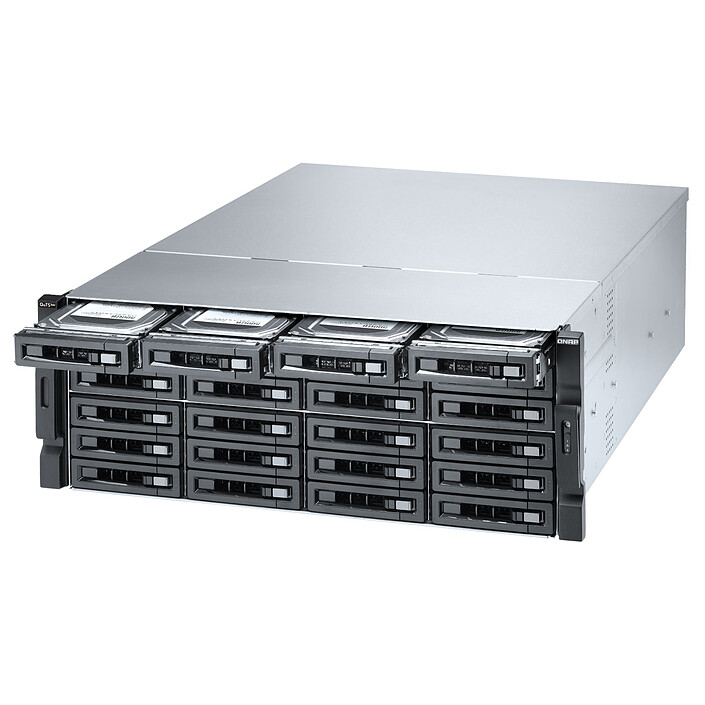

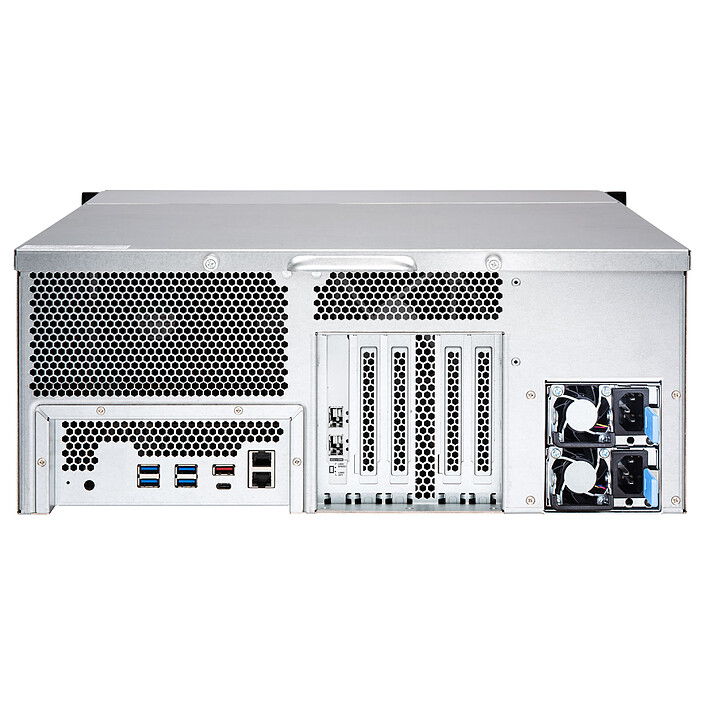

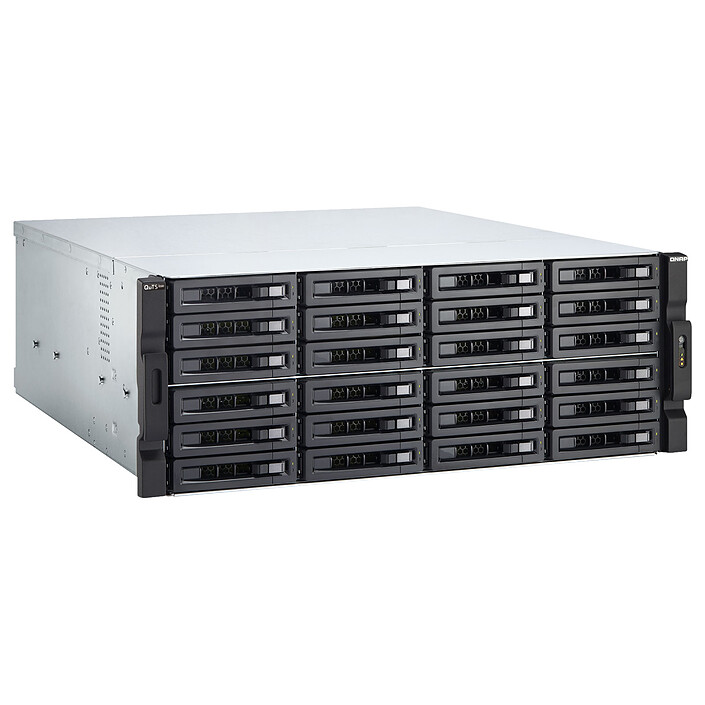

QNAP TS-h2477XU-RP-3700X-32G
4U 24-bay professional NAS server - 32GB DDR4 RAM - AMD Ryzen 7 3700X and 800W redundant power supply - QuTS hero (without hard drive)
Last price 6 599€95
QNAP TS-h2477XU-RP: 24-bay NAS with redundant power supply
The QNAP TS-h2477XU-RP-3700X-32G 4U rackmount NAS has 24 2.5"/3.5" bays. It features an AMD Ryzen 7 3700X processor (8 cores/16 threads) and is powered by the QuTS Hero 128-bit ZFS-based operating system. It is also scalable with up to 128GB of DDR4 memory and offers 4 PCIe 3.0 slots. The TS-h2477XU-RP offers server-grade performance with high reliability. The pre-installed 2-port 10GbE network card helps improve performance of bandwidth-intensive applications and reduce CPU load. In addition, the TS-h2477XU-RP scale-out NAS meets the growing data storage needs, as well as advanced features such as over-provisioning on SSD, full virtualization support, and more.
High performance hardware
Powered by an AMD Ryzen 7 3700X 8 cores and 16 threads (3.4 GHz / Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128 GB DDR4 RAM, the TS-h2477XU-RP offers excellent performance for multi-tasking and is capable of running multiple virtual machines simultaneously. For resource-intensive business applications such as VDI, private cloud, and server virtualization, the TS-h2477XU-RP offers high performance and reliable performance for enterprise computing environments.QuTS Hero Operating System
QuTS hero combines QTS under apps with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimised performance, so it can cope with the complexity and performance demands of modern computing. From storage management and virtualization to collaborative multimedia workflows, QuTS hero simplifies your business-critical tasks.
PCI-Express expansion card slot
The TS-h2477XU-RP has 4 PCIe Gen3 slots (one of which is already occupied by a card with two 10Gbps SFP+ ports) that allows for the installation of various expansion cards to tailor the use of the NAS according to the business needs. Whether it's adding expansion units with a SAS card, increasing bandwidth with a 40 GbE card or adding SSDs for increased cache and performance.
Built for virtualisation
The TS-h2477XU-RP supports iSCSI LUNs as a high-performance, reliable, and affordable storage solution for VMware, Citrix, Microsoft Hyper-V, and Windows Server 2019 virtualization environments.
It also supports VMware VAAI and Microsof ODX to improve performance by offloading server load for ESXi server and Hyper-V, respectively. QNAP vSphere Client plug-in and Web plug-in are also supported to increase operations and management efficiency in virtualization applications.
Main features :
- 24-bay NAS for virtualisation and heavy duty applications
- AMD Ryzen 7 3700X processor (Octo-Core 3.4 GHz / 4.4 GHz Turbo - 16 Threads - 36 MB cache)
- 32 GB DDR4 RAM (2 x 16 GB - 4 slots - 128 GB max.)
- 24 2.5"/3.5" slots
- 2 Gigabit Ethernet ports + 2 SFP+ 10 Gbps ports
- 4 PCIe slots: 2 x PCIe 3.0 x4 + 2 x PCIe 3.0 x8 (1 occupied)
- Redundant power supply 2 x 800W
Select your criteria
General information |
Product name |
QNAP TS-h2477XU-RP-3700X-32G |
Brand |
QNAP | |
Model |
TS-H2477XU-RP-3700X-32G | |
Processor |
CPU frequency |
3.4 GHz |
Memory size |
32 GB | |
Memory type |
DDR4 | |
Network |
Network standard(s) |
10/100/1000 Mbps |
| 10 Gbps Gigabit Ethernet (10 GbE) | ||
Network connector(s) |
2 X Gigabit Ethernet - RJ45 Female | |
| 2 X SFP+ 10 Gbps | ||
Wake On LAN |
Yes | |
DLNA certification |
Yes | |
Storage |
Capacity |
0 GB |
Internal interface |
24 X Serial ATA 6Gb/s (SATA Revision 3) | |
Hard drive format |
3" 1/2 | |
| 2" 1/2 | ||
Hard drive |
Without hard drive | |
Number of discs |
0 | |
Max number of discs |
24 | |
RAID supported |
Yes | |
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
| 5 | ||
| 50 | ||
| 6 | ||
| 60 | ||
| JBOD | ||
| Single Disk | ||
File system |
ZFS | |
Connector(s) |
1 X USB 3.1 Type C | |
| 1 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 2 X PCI Express 3.0 x4 | ||
| 2 X PCI Express 3.0 x4 | ||
Compatibility |
Server functions |
Web |
| Virtualization | ||
| Video surveillance | ||
| FTP | ||
| Multimedia | ||
| Photo | ||
Windows ADS |
Yes | |
iSCSI (SCSI encapsulation) |
Yes | |
Scalable |
Yes | |
Supported OS |
Microsoft Windows 8 | |
| Microsoft Windows 7 | ||
| Microsoft Windows 10 | ||
| Windows Server 2019 | ||
| Windows Server 2016 | ||
| Windows Server 2012 R2 | ||
| Windows Server 2012 | ||
| Windows Server 2008 R2 | ||
| Mac OS X 10.10 or higher | ||
| Linux | ||
Physical characteristics |
Rackable |
Yes |
Sound level |
27.5 dB | |
Consumption |
143.97 W | |
Width |
481.04 mm | |
Height |
176.15 mm | |
Depth |
672.02 mm | |
Weight |
22.66 kg | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all QNAP products
Product referenced on 1 Jul 2021
For the moment, there are no customer reviews.Write a review
