Pictures may differ from actual products

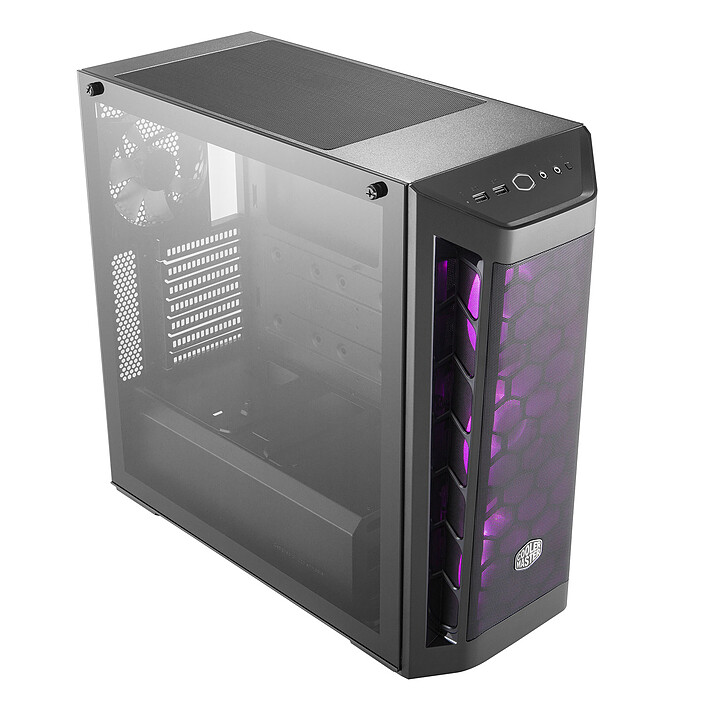

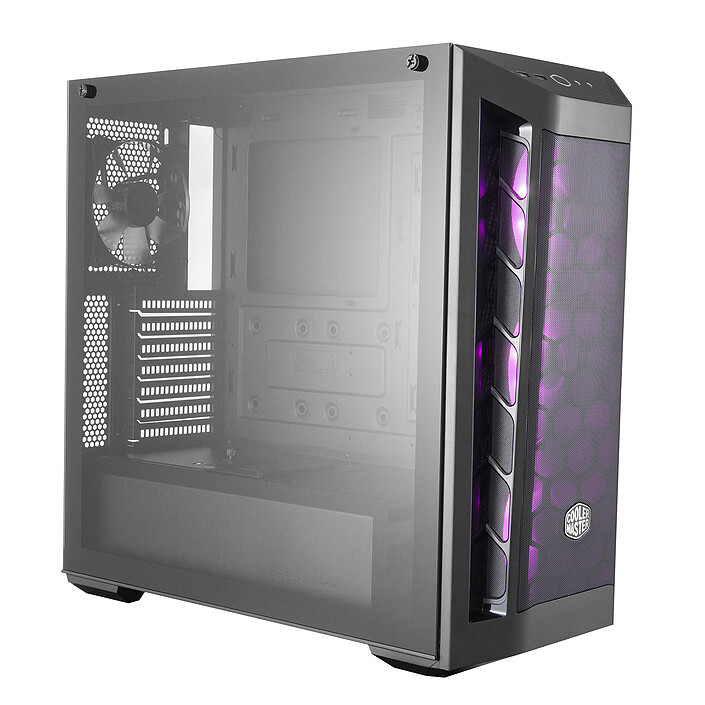

Cooler Master's MasterBox MB511 RGB mid-tower case has a tempered glass window that will showcase the included RGB fans. This case is an excellent compromise between price and scalability for gamers looking for a case that can accommodate the latest configuration. The generous interior space allows for the installation of a Mini-ITX, Micro-ATX or ATX motherboard coupled with a graphics card of up to 410mm in length. The side window allows you to keep an eye on the interior of your machine at all times.

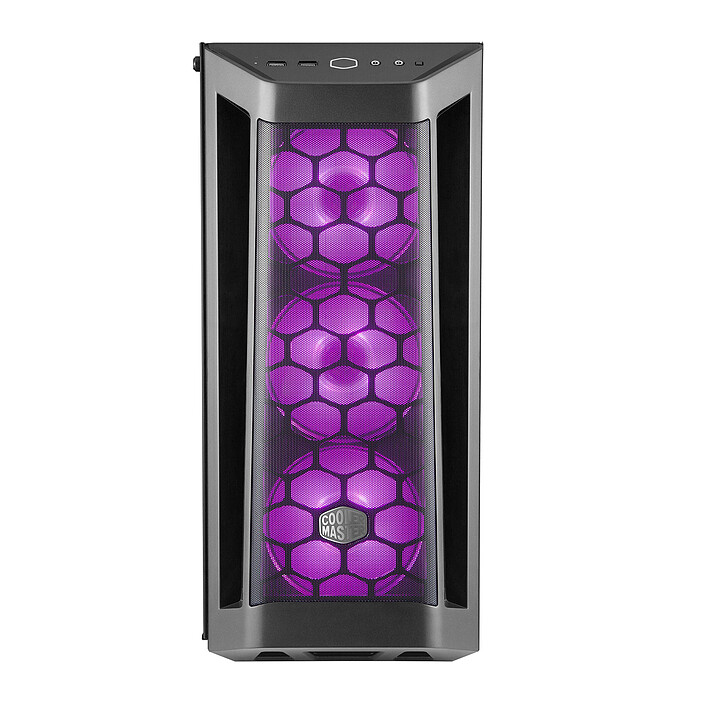

Thanks to the numerous cooling options, your components will always remain at the ideal temperature. The case has three 120mm RGB fans at the front and one 120mm fan at the back and is compatible with water cooling (120 / 140 / 240 / 280 / 360mm).

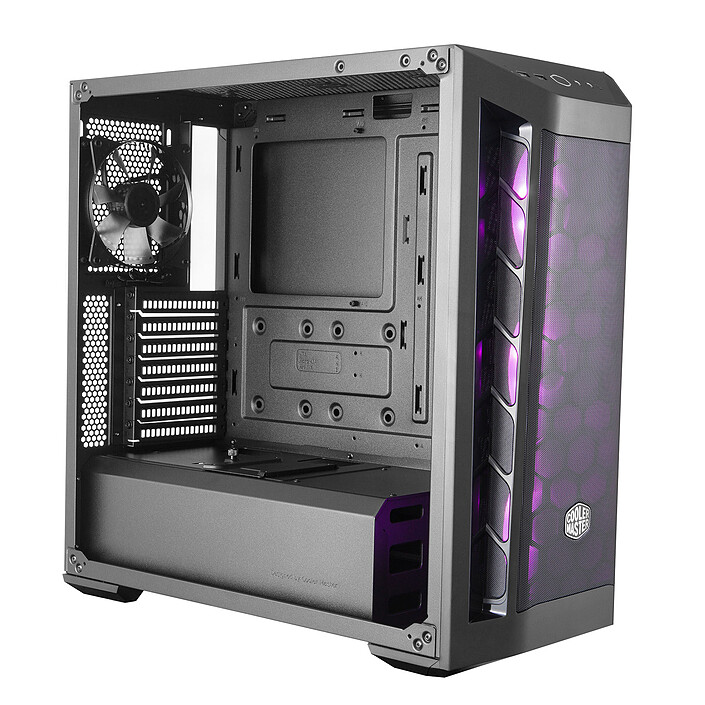

The MasterBox MB511 RGB has an interior that is designed and optimised to make every part of your setup accessible. The power supply with a maximum length of 180 mm will easily find its place for perfect optimization and neat cable management. There is enough space for a graphics card up to 410 mm long and a 165 mm high fan. It also includes three dust filters (front, top and bottom) to protect your system.
The CoolerMaster MasterBox MB511 RGB has six 120mm (or 4 x 140mm) fan slots with three 120mm RGB fans pre-installed on the front and one 120mm fan on the rear to allow you to choose your most optimised cooling solution for your configuration. Watercooling can also be installed either on the front (120/140/240/280/360 mm), on the top (120/240 mm) or on the back with a 120 mm.
Select your criteria
General information |
Product name |
Cooler MasterBox MB511 RGB (Black) |
Brand |
Cooler Master Ltd | |
Model |
MCB-B511D-KGNN-RGB | |
Main characteristics |
Graphic card max. length |
410 mm |
Max height CPU fan |
165 mm | |
Power supply max. length |
180 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Material |
Plastic | |
| Tempered glass | ||
| Steel | ||
Motherboard format |
ATX | |
| Micro ATX | ||
| Mini ITX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
Black | |
Front color |
Black | |
Dust filters |
3 | |
Glass |
Yes | |
Tempered glass |
Yes | |
LED RGB |
Yes | |
Water cooling compatible |
Yes | |
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of visible 3.5" slots |
0 | |
Number of invisible 3.5" slots |
0 | |
Number of 2.5" slots |
5 | |
Number of 2.5"/3.5" slots |
2 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Front connectivity |
Location of expansion ports |
Front |
Connector(s) available |
Headphone (3.5mm Jack Female) | |
| Microphone (3.5mm Jack Female) | ||
| 2 X USB 3.0 | ||
Cooling |
Number of rear fan(s) slots |
1 X 120mm |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
2 X 120 or 140mm | |
| 1 X 120mm | ||
Quantity of front fan(s) supplied |
3 | |
Number of above fan(s) slots |
2 X 120 or 140mm | |
Quantity of above fan(s) supplied |
0 | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 140mm radiator | ||
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Front AIO slot(s) |
120mm radiator | |
| 140mm radiator | ||
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
Above AIO slot(s) |
120mm radiator | |
| 240mm radiator | ||
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
217 mm |
Height |
469 mm | |
Depth |
496 mm | |
Weight |
7.04 kg | |
Volume |
50.47 l | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 18 Jan 2019
I changed my case with this magnificent cooler master. I recommend it to you, the design is magnificent, it is discreet and above all easy to access, there is even a power supply cover, all the screws are supplied in the box which is well packed in the box. It took me 2 hours to assemble it correctly. I recommend it to you.
Excellent box! It's a little too loud, but I don't have a problem with the noise when I have my headphones on. The fans cool well. The RGB on the fans is AURA compatible and I love the colour I chose!
The package was well received and was sent quickly and carefully by ldlc. The product was purchased new and received new as indicated.
This is my first purchase of a gamer pc, I didn't know what to expect and in the end I'm very happy with it, no worries about the delivery, the case is really nice with the RGB fans on the front. I would recommend
I'm very happy with this box. I bought it with the intention of getting a gamer setup, and I am not disappointed!
The front fans cool really well, the RGB gives a great look, very nice. The airflow is great, the PC doesn't heat up at all.
The only downside is that the space for the cable management is not very large. But it's still manageable!
