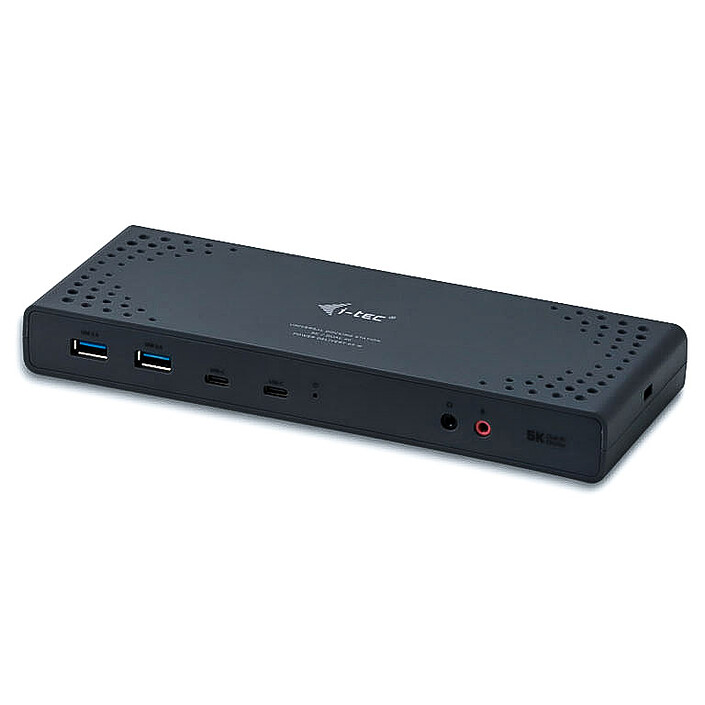

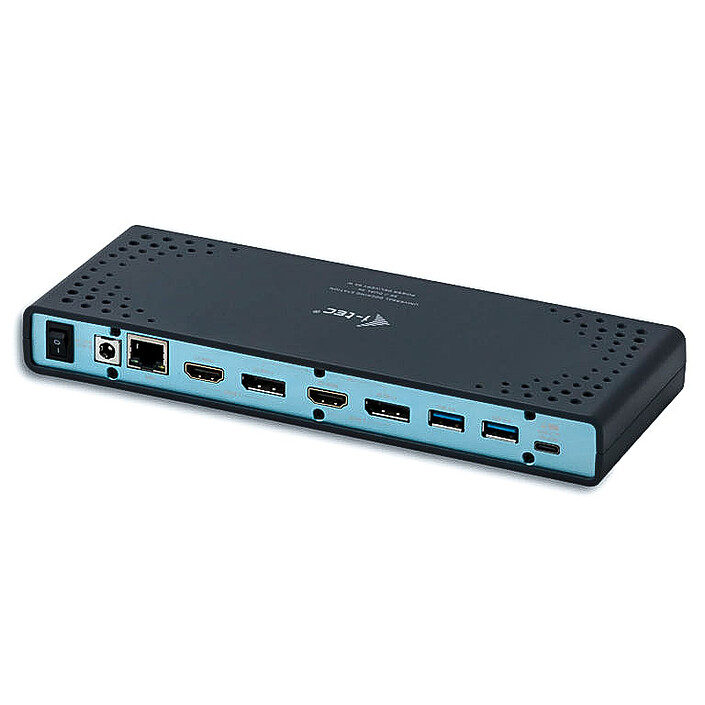

i-tec USB 3.0 / USB-C Dual Display Docking Station Power Adapter 100W

Docking station HDMI / DisplayPort / USB 3.0 / USB-C / Ethernet / Audio 3.5 mm / Micro 3.5 mm

i-tec USB 3.0 / USB-C Dual Display Docking Station Power Adapter 100W Docking station HDMI / DisplayPort / USB 3.0 / USB-C / Ethernet / Audio 3.5 mm / Micro 3.5 mm
Laptop docking station
Review i-tec USB 3.0 / USB-C Dual Display Docking Station Power Adapter 100W
Buy i-tec USB 3.0 / USB-C Dual Display Docking Station Power Adapter 100W
cheap i-tec USB 3.0 / USB-C Dual Display Docking Station Power Adapter 100W

Pictures may differ from actual products

One customer review

With this i-tec universal dock, you get incredible graphics resolution up to 5K/60Hz that no other dock in this price range offers.

Docking station HDMI / DisplayPort / USB 3.0 / USB-C / Ethernet / Audio 3.5 mm / Micro 3.5 mm

Overview

Get ready to do great things


With this i-tec universal dock, you get incredible graphics resolution up to 5K/60Hz that no other dock offers in this price range. If the dock is connected to a laptop or tablet with a USB-C or Thunderbolt 3 port that supports power, it can provide up to 65W of power delivery.

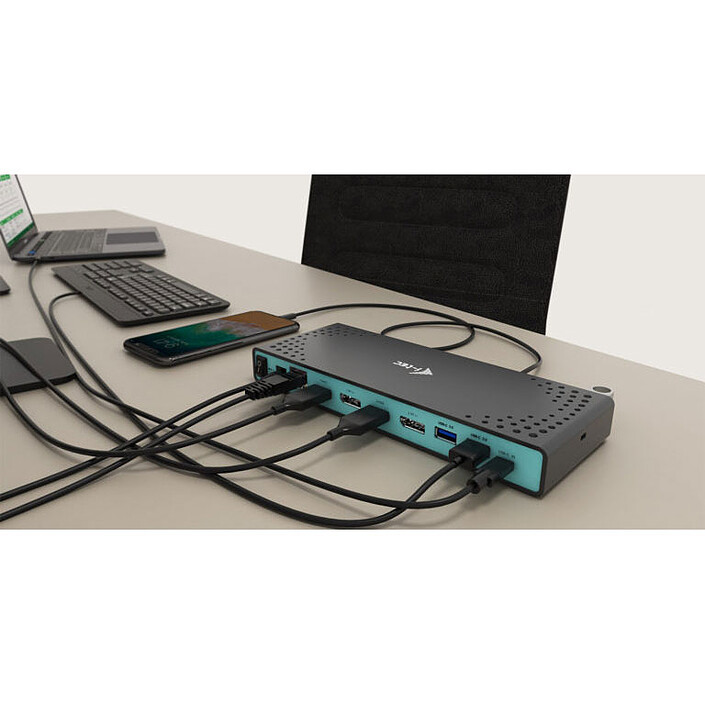

Personalise your workplace and connect your favourite accessories to your laptop or tablet via the USB-A 3.0 or USB-C interface. With this docking station, you won't have to constantly connect and disconnect all the peripherals every time you take your laptop or tablet with you. Another advantage is also more desk space, which will no longer be cluttered with cables. Just connect the docking station with one cable and you can start using it immediately. The connection cable with both terminations (USB-C to C, USB-C to A) is included in the package. The driver installation is automatic from Windows 10, download drivers for other operating systems here.

The docking station is equipped with four graphics outputs that allow you to use different combinations of two displays. Connect 2x HDMI or 2x Display Port or 1x HDMI and 1x Display Port, with constant 4K resolution up to 4096×2160 at 60Hz. By connecting a single monitor via 2 DP cables, you can achieve 5K resolution up to 5120×2880 at 60Hz, but your computer's graphics card must support 5K resolution. With its own powerful DL 6950 controller, your docking station will not clutter your laptop or tablet.

The docking station also offers audio input/output, a gigabit network card, four USB 3.0 ports, a Kensington lock and an ON/OFF switch. In addition, it has a compact and stylish design and an excellent passive cooling efficiency system.

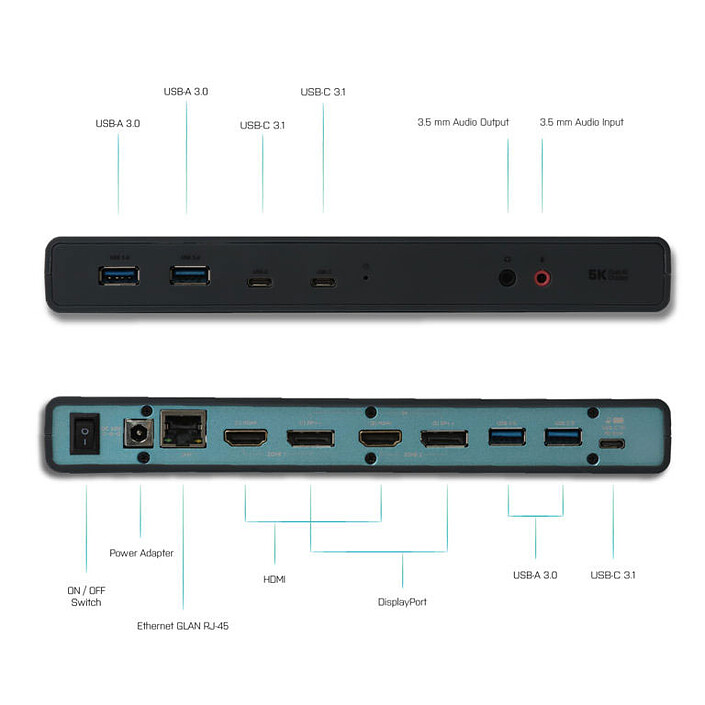

Features :

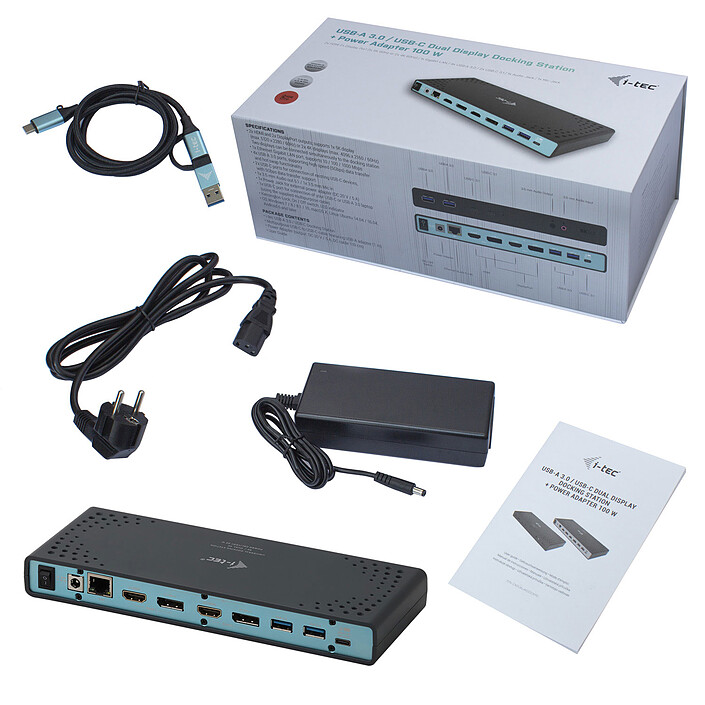

  • 1x USB-C port for portable connection via USB-C or USB-A interface, connection cable with both terminations is included in the package
  • Graphics interface: 2x HDMI and 2x Display Port. The docking station supports up to two monitors. Resolution:
  • 1 monitor connected via 2 DP cables: 1x DP + 1x DP allows 5K resolution up to 5120×2880 at 60Hz, your computer's graphics card must support 5K resolution
  • 2 monitors connected simultaneously: 1x DP + 1x DP enables 4K resolution up to 4096×2160 @ 60Hz; 1x DP + 1x HDMI enables 4K resolution up to 4096×2160 @ 60Hz; 1x HDMI + 1x HDMI enables 4K resolution up to 4096×2160 @ 60Hz
  • 4x USB-A 3.0 ports to connect your existing USB 3.1 / 3.0 / 2.0 devices and enable high-speed data transfer (5 Gbps), including 1x USB-A 3.0 supporting fast charging of smartphones and tablets (BC 1.2)
  • 2x USB-C 3.1 ports for connecting your USB-C compatible devices, supporting high speed data transfer (5 Gbps), supporting USB Hot Swapping
  • 1x RJ-45 GLAN Ethernet port for high-speed networking and Internet access over Gigabit Ethernet, with speeds of 10/100/1000 Mbps
  • Chipset: DisplayLink DL6950, VIA VL813
  • Power Delivery up to 65W (requires USB-C port supporting power function). For HP notebooks with a USB-C port with power delivery (HP EliteBook and HP ZBook), it may be necessary to restart the docking station using the on/off switch in order to achieve full functionality, including charging the notebook.
  • Separate microphone output and headphone output, 1x 3.5mm audio output, 1x 3.5mm microphone input
  • ON / OFF switch for switching the docking station on and off
  • LED indicator
  • Kensington lock
  • 1x power input - external power adapter (output: DC 20V / 5A)
  • Operating systems: Windows 7/8/8.1/10, Mac OS X, Linux Ubuntu (14.04, 16.04, 17.04, 17.10, 18.04), Android 5 and higher, Chrome OS R51 and higher. Windows 10 - Automatic installation of operating system drivers. Other operating systems - manual driver installation. Automatic software update.
  • Product dimensions: 223 x 88 x 27 mm / 338 g
Specifications
Select your criteria

General information

Product name

 i-tec USB 3.0 / USB-C Dual Display Docking Station Power Adapter 100W

Brand

 i-tec

Model

 CADUA4KDOCKPDL

Technical specifications

Width

 223 mm

Height

 27 mm

Depth

 88 mm

Weight

 338 g

Connector(s) available

 1 X Headphone (3.5mm Jack Female)
1 X Microphone (3.5mm Jack Female)
1 X Gigabit Ethernet - RJ45 Female
4 X USB 3.0 Type A Female
3 X USB 3.1 Type C Female
2 X HDMI Female
2 X DisplayPort Female

Interface with the computer

 USB Type C

Power Delivery

 100W

Warranties

Commercial warranty

 Seller 3 years

Legal warranty

 See terms & conditions

See all i-tec products

See i-tec Laptop docking station section

Product referenced on 20 Dec 2018

Customer review
Global rating
3/10
based on 1 review Editorial and moderation guide
  • 0%
  • 0%
  • 0%
  • 100%
    1 review
  • 0%
  • by diplomegalo
    Posted on 14 Dec 2021
    Bought on 25 Aug 2021 from LDLC
    Number of reviews: 1 Average rating: 3

    Malfunction a few days after use

    I use this dock with two different PCs, during the week with a professional PC, during the weekends and evenings with a personal PC. After a few weeks, the USB ports did not work anymore and now, after a few months of use, I have problems with the display. I have to regularly switch off the dock and restart my pc to reset the display. I have reinstalled the drivers several times, making sure to run the clean application first, but it hasn't changed anything. I am now looking for another solution.
