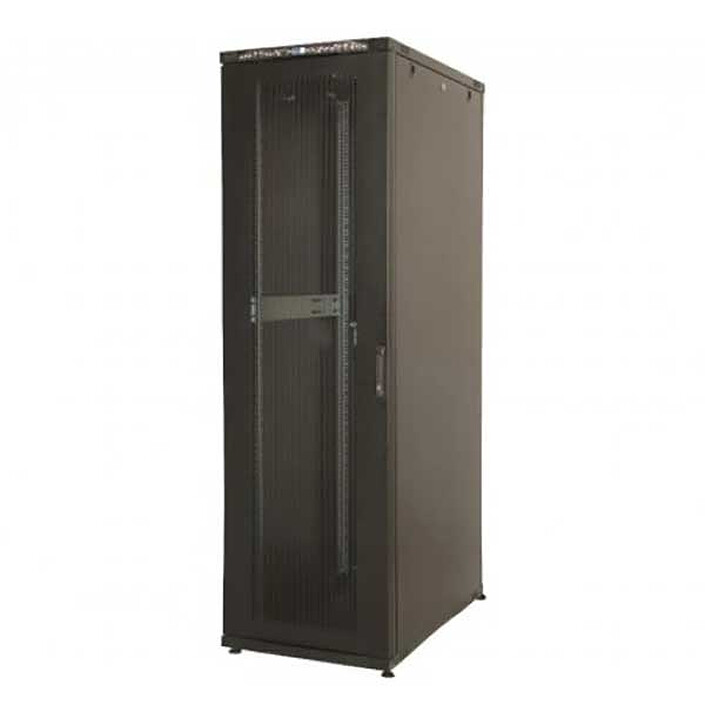

Ekivalan BEEA 19" server cabinet - 22U - 600 x 800 mm - payload 600 kg - colour black
Server cabinet - dimensions 600 x 800 x 1091 mm - payload 600 kg - delivered assembled
Pictures may differ from actual products
The ekivalan BEEA is an economical 600 mm deep rack. It offers ideal specifications for use as a server rack. Its robust structure can take a load of up to 600 kg to accommodate servers of various sizes.
Server cabinet - dimensions 600 x 800 x 1091 mm - payload 600 kg - delivered assembled
Overview
A cost-effective and secure server rack with a robust structure
The ekivalan BEEA is an economical 800 mm deep rack. It offers ideal specifications for server rack use. Its robust structure accepts a load of up to 600 kg to accommodate servers of various sizes. It will fit in your server rooms or in an isolated location. Each rack is equipped as standard with an internal temperature sensor with a digital display screen on the outside of the rack. The interior of the rack is accessible from the front, rear and sides. Each access is equipped with a lock. It also offers several cable entries (top and bottom of the rack) and pre-drilled holes to optimise air extraction from the fans. It offers numbered U's. In fact, each of the 4 19'' uprights is numbered from top to bottom and from bottom to top.
Strong points:
- Digital temperature display
- U numbered
- Top and bottom cable channels
Features :
- Rigid structure, width 600 mm and depth 800 mm, mechanically assembled (not removable)
- Height: 22U
- 600 kg payload
- 1 front door 63% honeycomb perforated, with lock, 235° opening
- 1 rear door, 63% honeycomb perforated, with lock, 120° opening
- 4 x 19" uprights with U-numbering, depth-adjustable
- 2 removable side panels with locks
- 2 cable channels top (300 x 55 mm) and bottom (350 x 250 mm)
- Roof pre-drilled for mounting up to 4 fans
- Temperature sensor with digital display on the outside of the cabinet (operates with 2 lithium batteries supplied)
- Protection class: IP 20
- Complies with EN 61587-1:2012, IEC 297-1 & IEC 297-2, EN 60950-1:2006, ISO14001 & 100% recyclable
- RoHS compliant
- 4 height adjustable stabilisation feet
- Grounding kit
- Cabinet delivered assembled (not disassembled) and secured
- Dimensions (W x D x H) : 600 x 800 x 1091 mm
- Weight : 50 Kg
- Colour : Black
- 5 years manufacturer's warranty
Logistics information :
This product is available in the following locations: France, Belgium, Luxembourg, Switzerland, Spain, Italy, Monaco.
Specifications
Select your criteria
General information |
Product name |
Ekivalan BEEA 19" server cabinet - 22U - 600 x 800 mm - payload 600 kg - colour black |
Brand |
ekivalan | |
Model |
BEEA22U6080BL122 | |
Technical specifications |
Product type |
Cabinet |
Rack format |
22U rack | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ekivalan products
Product referenced on 6 Apr 2023
