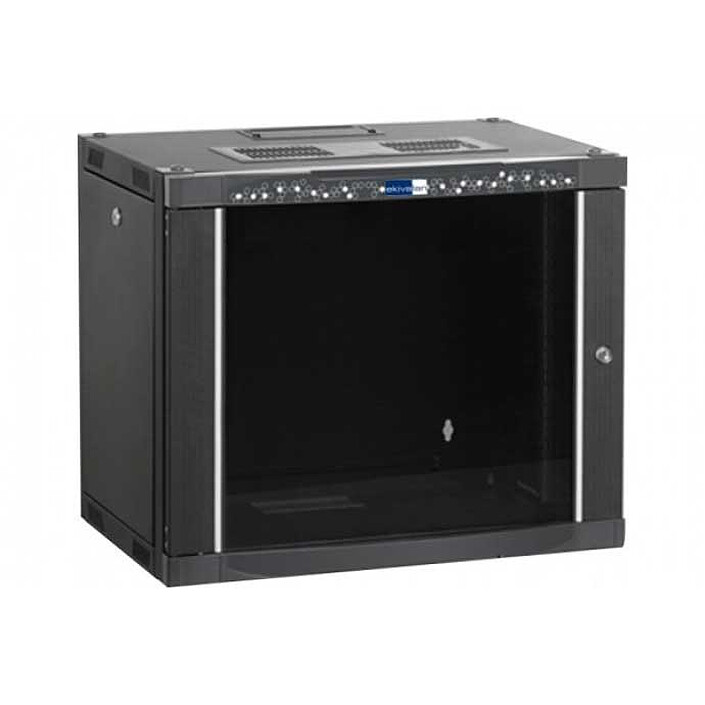

ekivalan CEPA 19" 7U enclosure - depth 600 mm - payload 80 kg - colour black
7U enclosure - dimensions 600 x 600 x 423 mm - load capacity 80 kg - black - delivered assembled
Pictures may differ from actual products
The ekivalan "CEPA" enclosure is ideal for durable network installations requiring a high quality product. Its solid structure allows a load of up to 80 kg, which will allow you to house without constraints your patch panels, switches or various active rackable elements
7U enclosure - dimensions 600 x 600 x 423 mm - load capacity 80 kg - black - delivered assembled
Overview
Ideal enclosure for long-term network installations
The ekivalan "CEPA" enclosure will be ideal for durable network installations requiring a high quality product. Its solid structure allows a load of up to 80 kg, which will allow you to house your patch panels, switches or various active rack elements in 19" format without constraints. The ventilation unit (available as an option) can be installed from the inside as well as from the top of the enclosure. This means that it can be accessed without having to remove the already installed 19" components. Each post is numbered from top to bottom and from bottom to top. It gives you full access. The enclosure is accessible from the front and the sides. It is also possible to add a ''Double section'' option for access from the rear.
Highlights:
- Up to 80 kg payload
- Possibility to put the enclosure on wheels (optional)
- Top and bottom cable channels
- Ventilation unit (optional) can be installed without dismantling the 19" elements
Main features:
- Rigid structure, width 600 mm and depth 600 mm (riveted, non-dismountable)
- Height: 7U
- 80 kg payload (reduced when used with the double section option)
- Single front door in safety glass, with lock, 235° opening
- 2 x 19" uprights (front) with "U" numbering in both directions, adjustable in depth
- 2 removable side panels with lock
- 2 cable channels, top with dustpan (145x70 mm) and bottom (145x70 mm)
- Roof pre-drilled for installation of a ventilation unit (optional)
- Protection class: IP 20
- Complies with EN 61587-1:2012, IEC 297-1 & IEC 297-2, EN 60950-1:2006
- RoHS compliant
- With grounding kit
- Dimensions: 600 x 600 x 423 mm
- Weight: 18 Kg
- Colour: Black
- Manufacturer's warranty: 5 years
Logistics information :
This product is available in the following locations: France, Belgium, Luxembourg, Switzerland, Spain, Italy, Monaco.
Specifications
Select your criteria
General information |
Product name |
ekivalan CEPA 19" 7U enclosure - depth 600 mm - payload 80 kg - colour black |
Brand |
ekivalan | |
Model |
CEPA07U6060BL132 | |
Technical specifications |
Product type |
Cabinet |
Rack format |
7U rack | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ekivalan products
Product referenced on 28 Apr 2022
