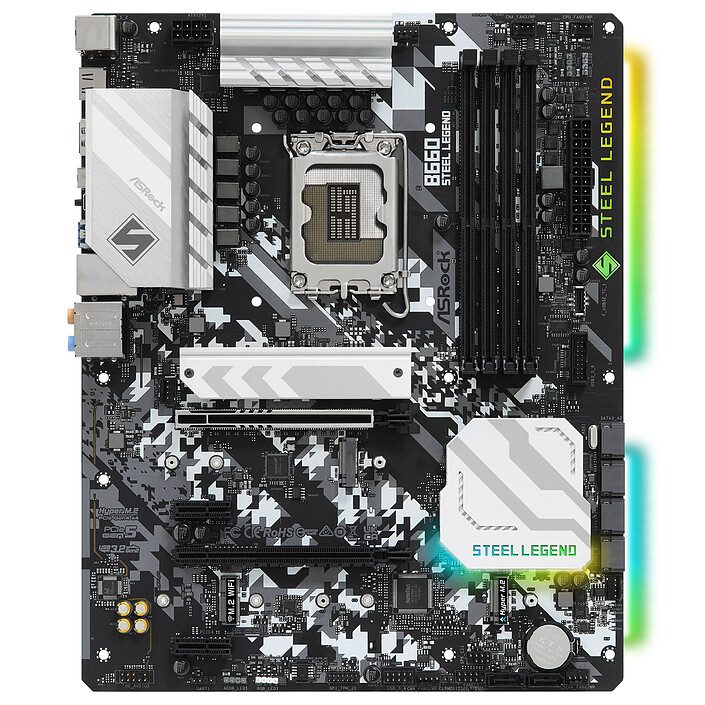

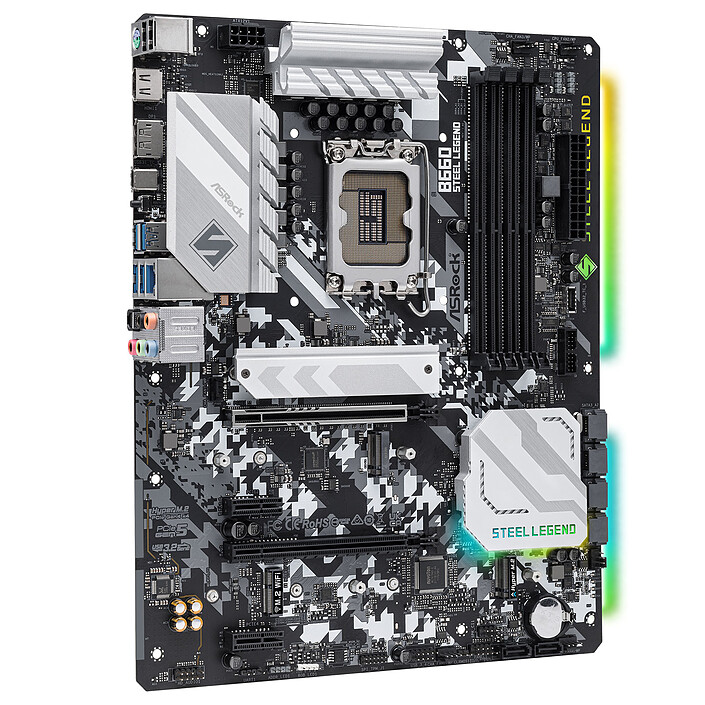

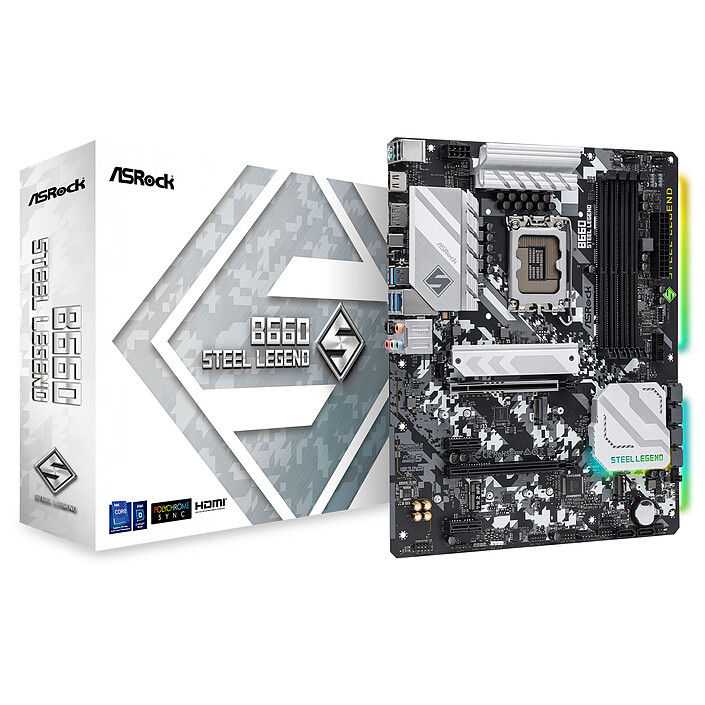

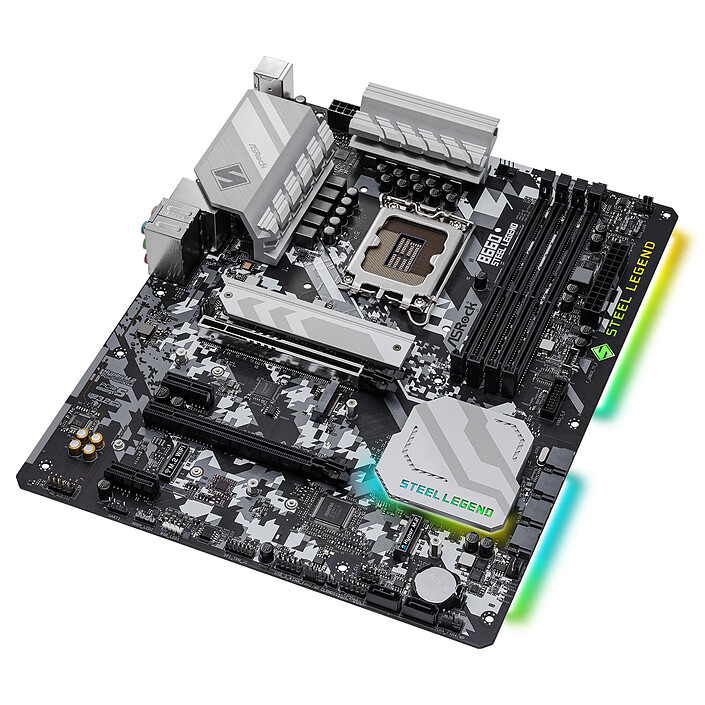

ASRock B660 Steel Legend
ATX Socket 1700 Intel B660 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE
Last price 229€96
Gaming performance and unique design
ASRock Steel Legend motherboards combine design and efficiency. With reliable components and improved thermal management, they deliver consistent performance over time and are extremely efficient.
The ASRock B660 Steel Legend motherboard is designed to accommodate Intel processors on socket LGA 1700. It will allow the assembly of a powerful and efficient gaming configuration at a controlled cost. Gaming, streaming, intensive multitasking, multimedia creation, it is the perfect solution to design a last generation PC. It also supports DDR4 RAM, PCI-Express 5.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4. 0 drives as well as USB 3.1 and 3.2 devices.
ASRock B660 Steel Legend
- Support for 12th generation Intel Core processors on socket LGA 1700
- DDR4 memory support, up to 5000 MHz (OC)
- 9 Phase Dr.MOS Power Design
- Reinforced PCI-Express 5.0 16x slot (steel structure)
- Audio 7.1 (Realtek ALC897 Audio Codec)
- USB 3.2 on the front (with compatible enclosure)
- 2 x M.2 PCIe 4.0 x4
- 2.5 GbE LAN
- ATX format
All the power of Intel processors
With high frequencies, achieve high performance in games. Confidently take on your opponents or explore new worlds with a revolutionary processor architecture that focuses on what matters. 12th generation Intel processors are simply designed for the next generation of gaming.
Select your criteria
General information |
Product name |
ASRock B660 Steel Legend |
Brand |
ASRock | |
Model |
B660 STEEL LEGEND | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B660 Express |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5000 MHz | |
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4200 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3800 MHz | ||
| DDR4 4000 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
| 1 X PCI Express 4.0 x16 (x2) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8125BG |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x2 + SATA 6 Gb/s | |
| 2 X M.2 - PCI-E 4.0 x4 | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |

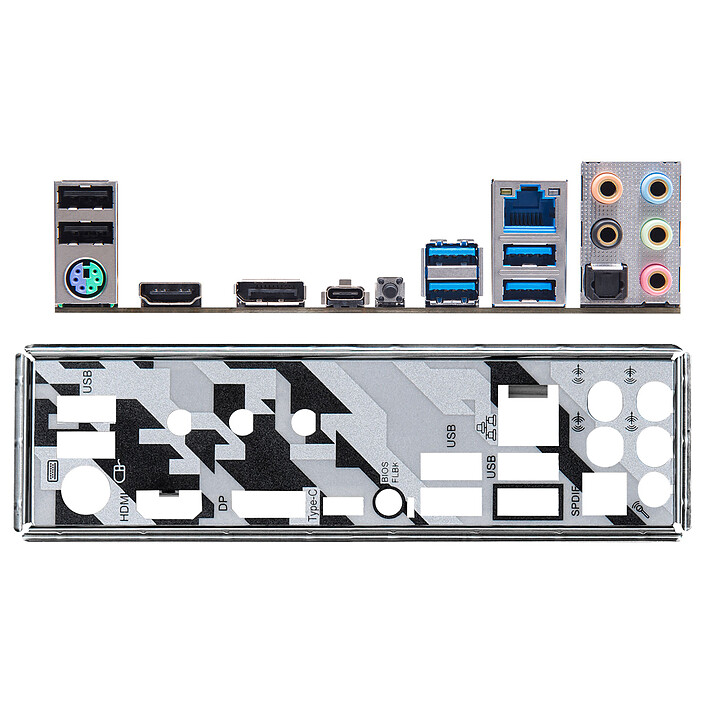

Rear panel connectors |
5 X 3.5mm Jack Female Stereo |
| 1 X Digital audio S/PDIF Optical | ||
| BIOS Flash Update | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 1 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 4 X USB 3.0 | ||
| 1 X USB 3.1 Type C | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
Additional connectors |
1 X LED RGB connector(s) | |
| 3 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X Internal USB 2.0 | ||
| 1 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ASRock products
Product referenced on 9 Mar 2022
