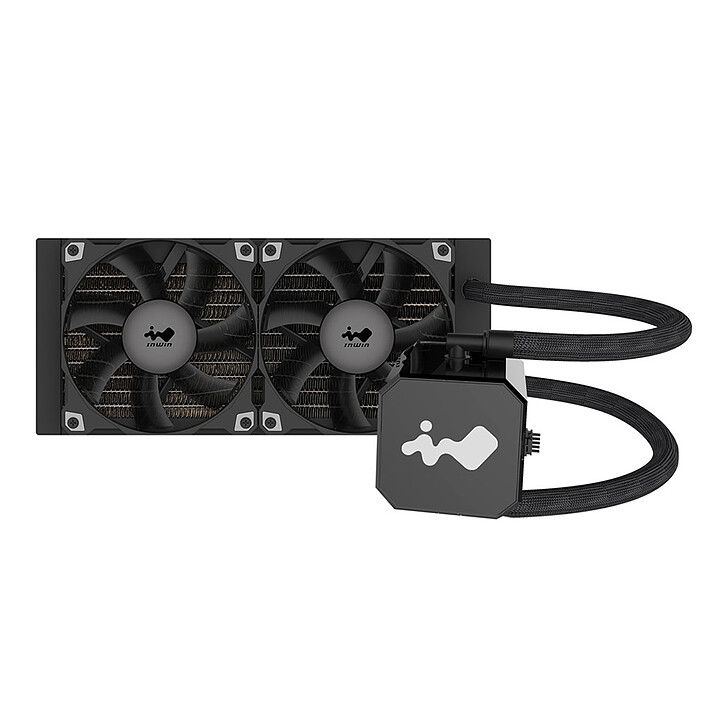

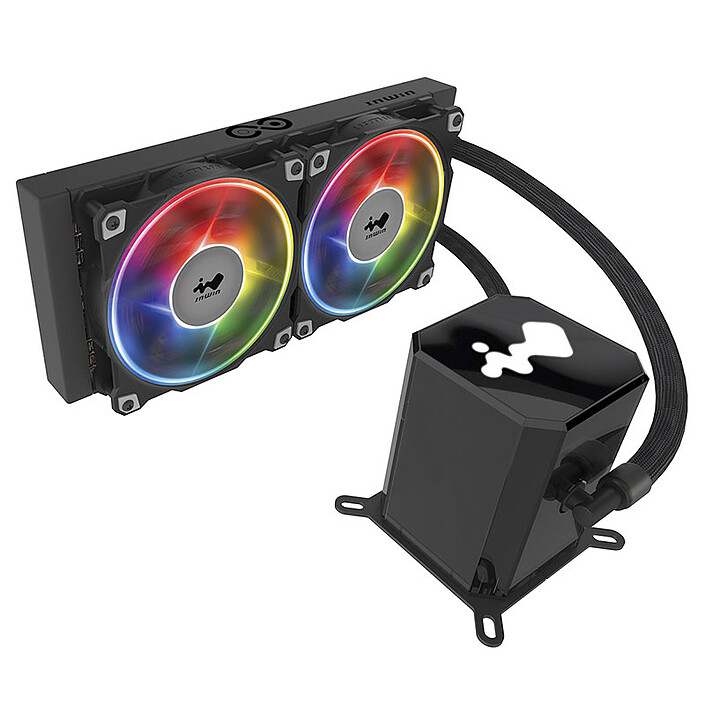

IN WIN SR24 AIO + socket kit Intel LGA 1700
All-In-One liquid cooling radiator 240 mm for processor (Intel and AMD socket) with mounting kit for Intel 1700 socket
Last price 109€99
All the IN WIN know-how in an AIO watercooler
The IN WIN SR24 is an All-In-One processor watercooler. It consists of a 240mm radiator, 2 x 120mm ARGB fans and a dual impeller pump for increased efficiency. Its unique, bright design and top-notch performance make it ideal for mid to high-end gaming configurations.
Efficient and safe

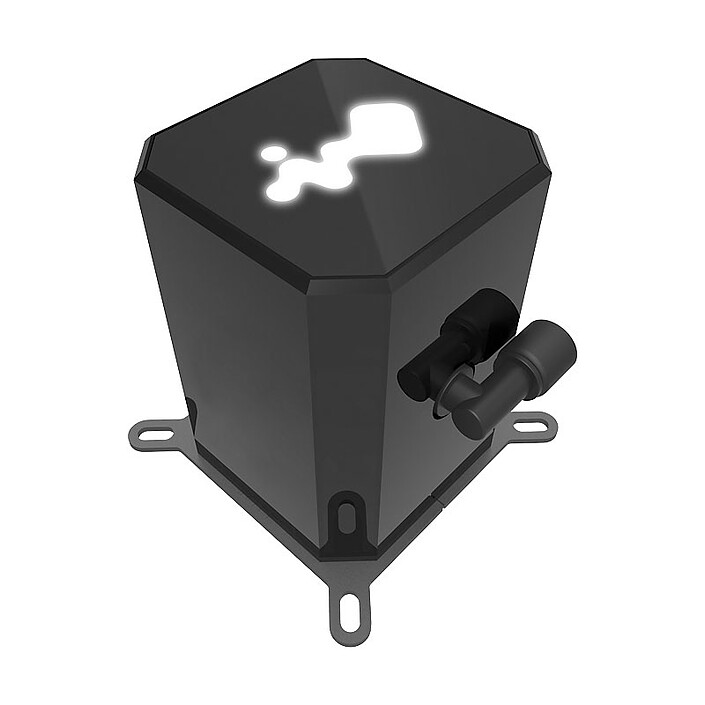

The patented dual impeller works in parallel to simultaneously push the flow to the copper plate to dramatically reduce the temperature and keep the system cool. If one of the pumps fails, the other will continue to operate while a warning light will alert users. The pump will illuminate with a white logo during normal operation. If a problem occurs or if the temperature rises too high, the LEDs will flash red and blue to warn the user and prevent damage to the components.
Efficient and quiet ventilation

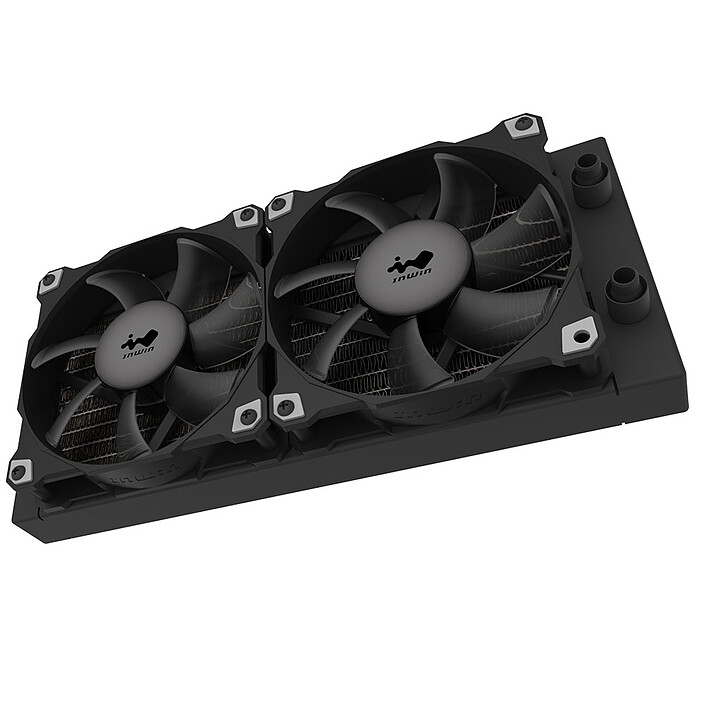

The Jupiter AJF120 series fans are specially designed for liquid cooling. The fans have a high airflow (101.5 CFM), high static pressure (4.22mm H2O) and a high speed mode that allows for 2500 rpm. The main reason is because of the way the airflow from the fans passes through the radiator fins. To address this problem, the SR Series uses AJF120 fans to provide the best performance while reducing noise.
ARGB LED
There are 16.8 million possible colours, which means that the AJF120 fans allow for ideal customisation for everyone. Users can choose to control the lighting independently with the supplied remote control or synchronise with a compatible motherboard (ARGB 3-pin 5V connector).
Select your criteria
General information |
Product name |
IN WIN SR24 AIO + socket kit Intel LGA 1700 |
Brand |
IN WIN | |
Model |
BUN33599 | |
Technical specifications |
Use |
Processor |
Processor support |
AMD AM2 | |
| AMD AM2+ | ||
| AMD AM3 | ||
| AMD AM3+ | ||
| AMD AM4 | ||
| AMD FM1 | ||
| AMD FM2 | ||
| AMD FM2+ | ||
| AMD sTR4 | ||
| Intel 1150 | ||
| Intel 1151 | ||
| Intel 1155 | ||
| Intel 1156 | ||
| Intel 1200 | ||
| Intel 1366 | ||
| Intel 1700 | ||
| Intel 2011 | ||
| Intel 2011-v3 | ||
| Intel 2066 | ||
Color |
Black | |
Luminous |
Yes | |
Connector(s) |
1 X 3-pin Female | |
| 1 X 4-pin Female | ||
PWM |
Yes | |
Heat Pipe |
No | |
Adjustable speed |
No | |
Cooling type |
Water cooling | |
Top Flow |
No | |
Dual tower |
No | |
Fan diameter |
120 mm | |
Max sound level |
23 dB | |
Minimum rotation speed |
500 RPM | |
Maximum rotation speed |
2500 RPM | |
Max airflow |
101.5 CFM | |
Material(s) |
ABS (Plastic) | |
| Aluminum | ||
| Copper | ||
Use |
Gamer | |
AIO radiator compatibility |
240mm radiator | |
Dimensions |
Height (fan included) |
100 mm |
Width (fan included) |
277 mm | |
Depth (fan included) |
120 mm | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
