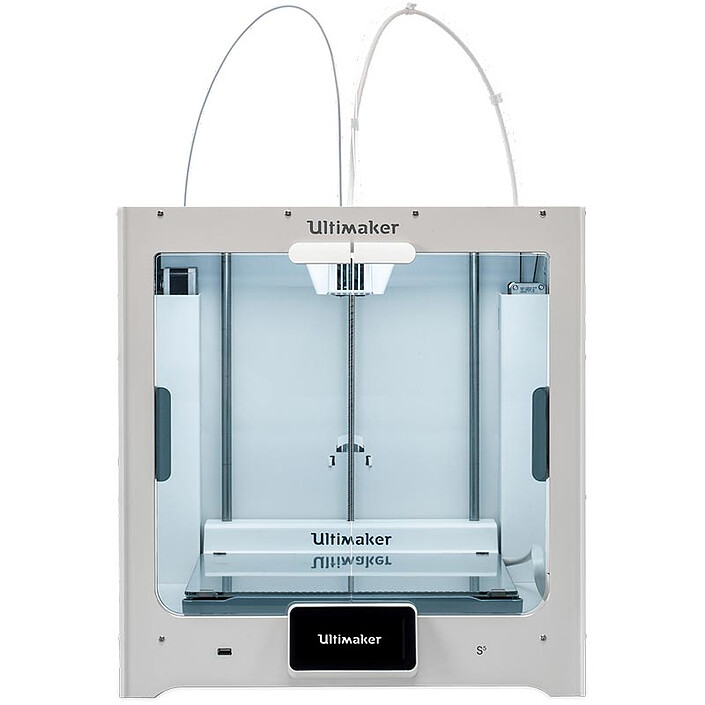

Ultimaker S5

Colour 3D printer with 1 dual extrusion printhead PLA/Tough PLA/ABS/PC/CPE/CPE+/PP/Nylon/TPU 95A/PVA - USB/Wi-Fi/Cloud

Last price 7 629€95
Holy Moly!
Equivalent products suggestions:
Overview

Revolutionary 3D printing confirmed and lasting

TheUltimaker S5 is the confirmation, the assurance of quality 3D printing. A high-performance, accurate and robust professional 3D printer, it will offer you a large printing volume. Complete with dual extrusion, interchangeable Print Cores, a glass heating plate with full active self-levelling and intuitive features. It is a 3D printer that combines versatility and printing reliability for maximum efficiency and industrial grade output.

.

For intuitive, high-performance 3D printing

The Ultimaker S5 3D printer is equipped with a colour touch screen that provides detailed information and a GCODE preview. This 4.7" screen makes the configuration of the printer easier and guides the user through the operations to be carried out.

The Print Cores are automatically detected by the printer via an EEPROM chip and are adapted to the type of material: a Print Core AA prints the building material and the Breakaway, a Print Core BB prints the soluble support material while the Print Core CC prints the abrasive materials. Interchangeable in seconds, Print Cores are available in different sizes (0.25, 0.40, 0.80mm).

Connect the Ultimaker S5 via Wi-Fi, ethernet or USB. Thanks to NFC technology, the S5 detects the type of material loaded. Frequent firmware updates bring the latest features and improvements directly to the printer.

Reliable, high quality 3D printing

The S5 has a touch sensor that scans the platen in multiple locations. This levelling is done either by quick self-levelling or by full self-levelling at multiple points. This ensures that the deck is perfectly level for an ultra-flat first layer with enhanced adhesion.

The S5's feeder has been redesigned (version 3) to incorporate a roll end sensor. The printer automatically pauses and notifies you when it is time to replace the roll. A reinforced toothed wheel prevents wear and tear. An ergonomic lever makes loading the filament easier.

Monitor your prints in real time from Cura with the integrated camera control. Glass front doors protect prints by limiting access and controlling airflow. The power supply is now integrated into the printer for less clutter.

Take advantage of the entire Ultimaker ecosystem

Ultimaker Essentials is included with the Ultimaker S5 printer. This suite of software consists of the cutting software, Cura Entreprise to prepare your 3D files, Ultimaker Digital Factory to allow you to manage your printers remotely, and also the Ultimaker 3D printing Academy. Finally you can also easily access the Ultimaker Marketplace to make even more successful and perfect 3D prints.

Main features :

  • Network connectivity: to print via Wi-Fi, LAN, cloud or USB
  • 4.7" touch screen: easy operation through an award-winning user interface
  • Advanced active levelling: reliable adhesion on the first layer, allows unattended use
  • Front enclosure: enhanced print environment for better print results
  • Flow Sensor: Stay informed when filament runs out to increase print success
  • Easy set-up and monitoring: with NFC material recognition and internal camera
  • Composite Material Compatibility: High strength print parts with unique properties
  • Technology: Filament deposition
  • Dual extrusion print head with self-calibrating nozzles and interchangeable print cores
  • Print volume (XYZ): 330 x 240 x 300 mm
  • Layer height: 0.20 mm nozzle: 150 - 60 microns / 0.4 mm nozzle: 200 - 20 microns / 0.6 mm nozzle: 300 - 20 microns / 0.8 mm nozzle: 600 - 20 microns
  • XYZ resolution: 6.9, 6.9, 2.5 microns
  • Printing speed < 24 mm3 /s
  • Heated glass plate (20 to 140°C)
  • Nozzle diameter: 0.4 mm (included) / 0.25 mm, 0.6 mm, 0.8 mm (sold separately)
  • Noise level: < 50 dBA
  • Connectivity: Wi-Fi, LAN, USB port
  • Dimensions: 495 x 585 x 780 mm
  • Net weight: 20.6 Kg
  • Software included: Ultimaker Cura, our free print preparation software Ultimaker Connect, our free printer management software Ultimaker Cloud, allows remote printing
  • Operating system: MacOS, Windows and Linux
  • Warranty: 2 years
Logistics information : This product is available in the following locations: France, Belgium, Luxembourg, Switzerland, Monaco.
Specifications
Select your criteria

General information

Product name

Ultimaker S5

Brand

Ultimaker

Model

218251

Technical specifications

3D printer type

Filament

Interface with the computer

Wi-Fi
USB

Print head(s)

1 print head

Consumable material(s)

ABS
Nylon
PLA

Number of color(s)

1

Heated bed

Yes

3D filament diameter

2.85mm

Layer thickness

20 Micron

Supported OS

Mac OS X
Linux
Microsoft Windows

Physical characteristics

Height

495 mm

Width

585 mm

Depth

780 mm

Weight

20.6 kg

Warranties

Commercial warranty

Seller 2 years

Legal warranty

See terms & conditions

Product referenced on 5 Aug 2021
