Pictures may differ from actual products
The ROG MAXIMUS XIII motherboards are the top of the line ASUS gaming motherboards. They are designed for ultra-demanding gamers looking for high performance, customization and extreme overclocking. They allow you to get the most out of your components thanks to a unique design made of robust materials and exclusive utilities. They incorporate gaming features and combine the benefits of new Intel processors with ASUS' iconic design and features.

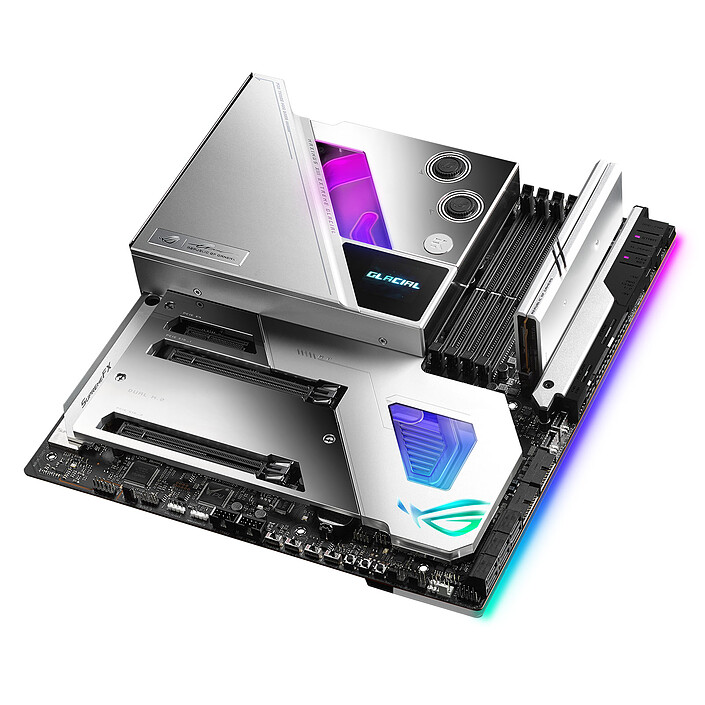

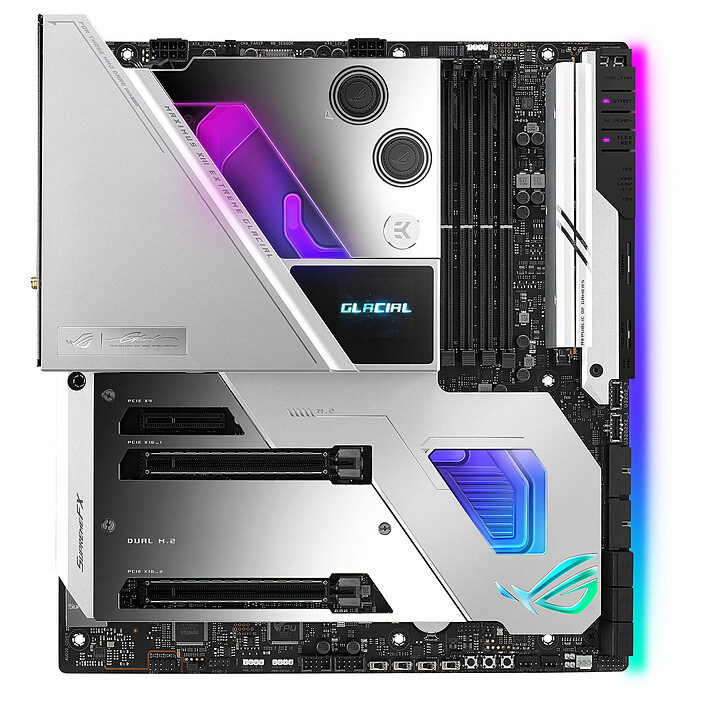

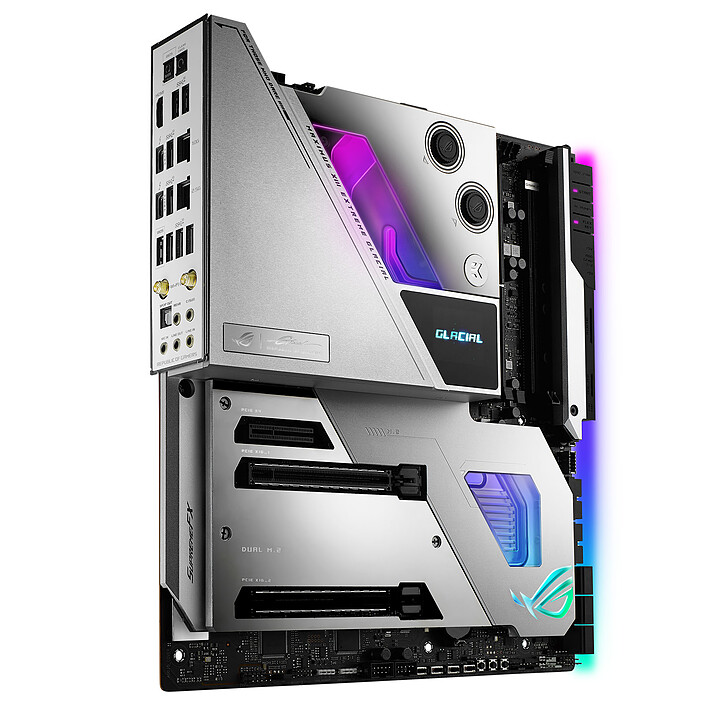

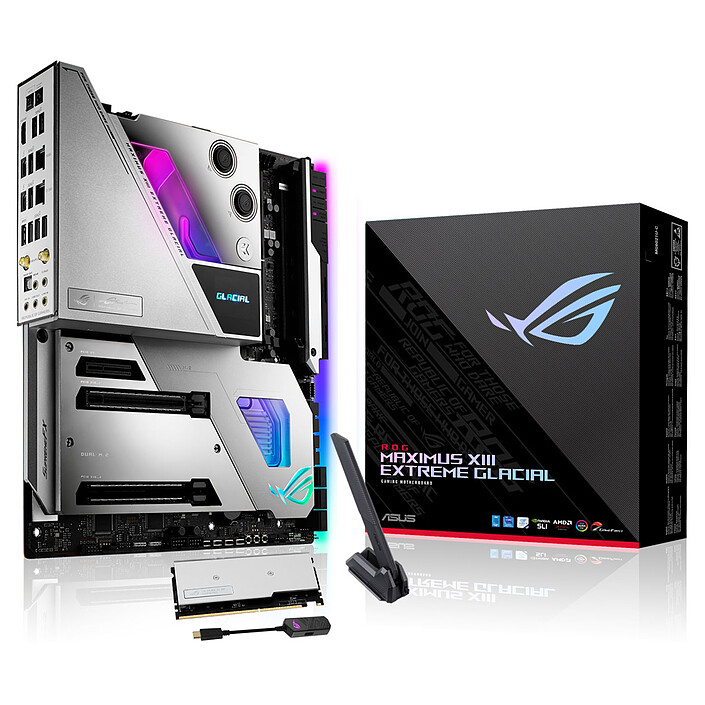

The ASUS ROG MAXIMUS XIII Extreme Glacial motherboard is designed to support 10th and 11th generation Intel processorson socket LGA 1200. It will allow the assembly of a powerful gaming configuration with a unique look. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high-end PC with high performance. It also supports DDR4 RAM, PCI-Express 4.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4.0 drives, and USB 3.2 and Thunderbolt 4 devices .
The 11th generation Intel Core Rocket Lake-S processor propels you to even more power with its PCI-Express 4. 0 compatibility and the presence ofHyper Threading across the entire range from Core i3 to Core i9. Its Turbo frequencies go ever higher while maintaining the same TDP as previous generations. Peak performance and fluidity are the order of the day for everyone, whether it's for office, creative or gaming use.
Select your criteria
General information |
Product name |
ASUS ROG MAXIMUS XIII Extreme Glacial |
Brand |
ASUS | |
Model |
90MB1730-M0EAY0 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z590 Express |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5333 MHz | |
| DDR4 5133 MHz | ||
| DDR4 5000 MHz | ||
| DDR4 4800 MHz | ||
| DDR4 4700 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4500 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4133 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3866 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 (x8) |
| 1 X PCI Express 4.0 x16 | ||
Number and Type of slots |
1 X PCI Express 3.0 x4 | |
Multi-GPU type |
SLI | |
Audio |
Audio Chipset |
Realtek ALC4082 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Marvell AQtion AQC113CS -10 GbE |
Number of ports/Ethernet controler N°2 |
1 X Intel i225-V | |
Network standard(s) |
Bluetooth 5.2 | |
| Wi-Fi 6E | ||
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| 10 Gbps Gigabit Ethernet (10 GbE) | ||
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 3 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
| 1 X M.2 - PCI-E 3.0 x4 | ||
Connectivity |
Rear panel connectors |
2 X SMA Female |
| 5 X 3.5mm Jack Female Stereo | ||
| 1 X Digital audio S/PDIF Optical | ||
| BIOS Flash Update | ||
| 2 X RJ45 Female | ||
| 8 X USB 3.1 | ||
| 2 X Thunderbolt 4/USB-C | ||
| 1 X HDMI Female | ||
Additional connectors |
2 X Internal USB 3.0 | |
| 2 X Internal USB 2.0 | ||
| 1 X PCI Express 6 Pin | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| Front panel audio | ||
| 3 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
277 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASUS products
Product referenced on 7 Apr 2021
I am a little disappointed with this motherboard where it is mentioned that it is designed to accommodate 10 and 11 th generation processors. It does not specify that with a 10 th generation processor only 2 of the 5 M2 slots will be usable if you want to take advantage of the 5 slots you must have an 11 th generation processor.
