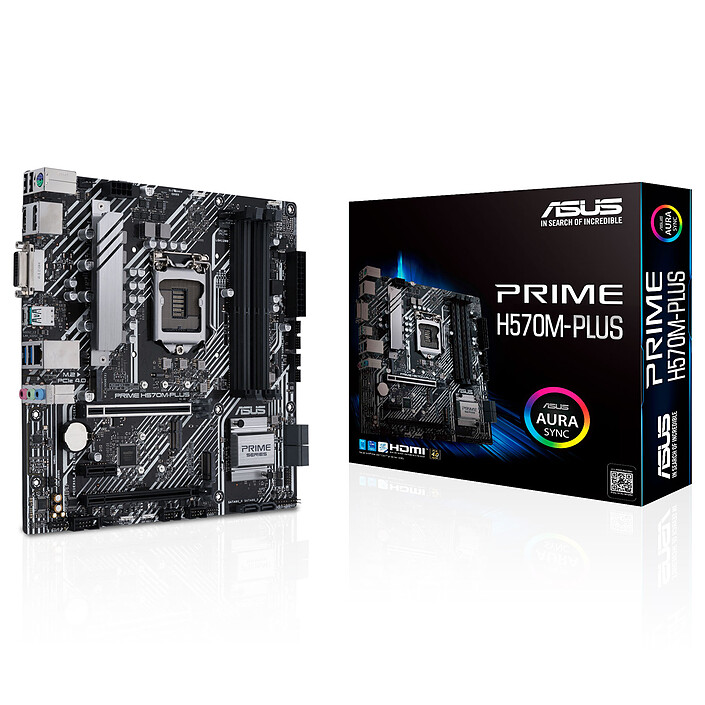

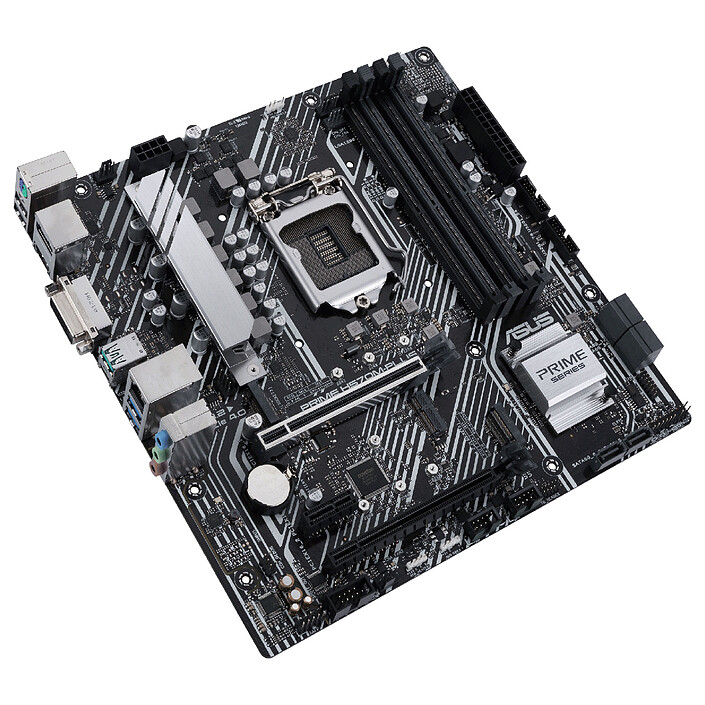

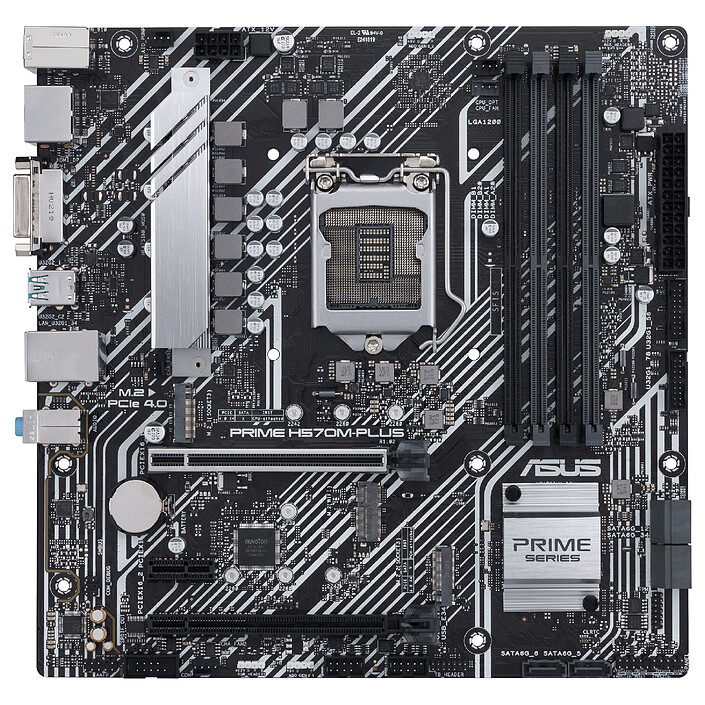

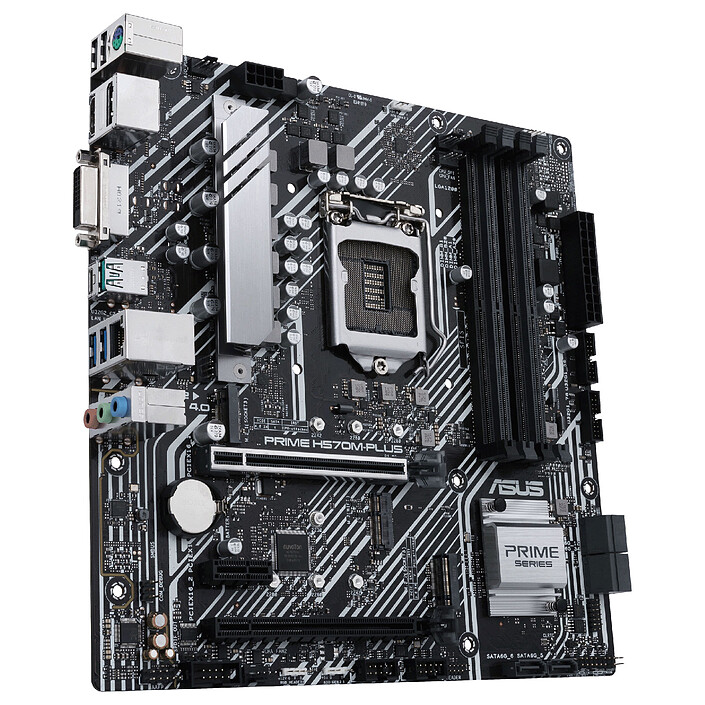

ASUS PRIME H570M-PLUS

Micro ATX Socket 1200 Intel H570 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 PCIe NVMe - USB 3.1 - PCI-Express 4.0 16x

Last price 155€95
Holy Moly!
Overview

Versatile Motherboard for 11th Generation Intel Core Processor

The ASUS Prime series is designed to unleash the potential of 11th Generation Intel Core processors. Featuring a robust design and comprehensive cooling solutions, the Prime H570 series motherboards offer users a wide range of hardware performance optimization options via included software.

The ASUS PRIME H570M-PLUS motherboard is designed to support 10th and 11th generation Intel processors on socket LGA 1200. It will allow the assembly of a gaming configuration at a controlled cost. Office, multimedia, multitasking, light multimedia creation, it is the ideal solution to design a versatile or gaming family PC. It also supports DDR4 RAM, PCI-Express 4.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4.0 drives as well as USB 3.1 peripherals.

ASUS PRIME H570M-PLUS

  • Compatible with 10th generation Intel Core processors and 11th generation Intel Core processors
  • DDR4 memory support, up to 4600 MHz (OC)
  • 1 x M.2 PCIe 4.0 x4
  • 5X Protection III: Multiple hardware safeguards for complete protection
  • ASUS OptiMem: High RAM compatibility and stability
  • Intel i219-V Gigabit LAN
  • Highly customisable with ASUS Aura Sync, four RGB connectors, two addressable
  • M.2 Key E slot for Wi-Fi module(not included)

11th Generation Intel Core Processor


The 11th generation Intel Core Rocket Lake-S processor propels you to even more power with its PCI-Express 4. 0 compatibility and the presence ofHyper Threading on the entire range from Core i3 to Core i9. Its Turbo frequencies go ever higher while maintaining the same TDP as previous generations. Peak performance and fluidity are the order of the day for everyone, whether it's for office, creative or gaming use.

Information provided by our tech department PCI-Express 4.0 connectivity is only available with 11th generation processors. The M.2 PCIe 4.0 x4 slot is disabled when using a 10th generation processor.
Specifications
Select your criteria

General information

Product name

ASUS PRIME H570M-PLUS

Brand

ASUS

Model

90MB16W0-M0EAY0

Processor

Processor support

Intel 1200

Number of CPUs supported

1

Chipset

Chipset

Intel H570 Express

Memory

Memory format

4 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

DDR4 4600 MHz
DDR4 4400 MHz
DDR4 4266 MHz
DDR4 4000 MHz
DDR4 3733 MHz
DDR4 3600 MHz
DDR4 3466 MHz
DDR4 3333 MHz
DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz
DDR4 2800 MHz
DDR4 2933 MHz
DDR4 3200 MHz

Memory type

DDR4

Memory technology

Dual Channel

Maximum RAM capacity per slot

32 GB

Maximum RAM capacity

128 GB

Graphic

Integrated graphics controller

No

Compatible graphics core integrated in the CPU

Yes

Expansion slots

Graphic connector(s)

1 X PCI Express 4.0 x16
1 X PCI Express 3.0 16x (x4)

Number and Type of slots

1 X PCI Express 3.0 x1

Multi-GPU type

None

Audio

Audio Chipset

Realtek ALC897

Number of audio channels

8

Network

Number of ports/Ethernet controler

1 X Intel I219-V

Network standard(s)

10/100/1000 Mbps

Storage

RAID supported

Yes

Hard drives connectors

1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s
1 X M.2 - PCI-E 4.0 x4
6 X Serial ATA 6Gb/s (SATA Revision 3)

Connectivity

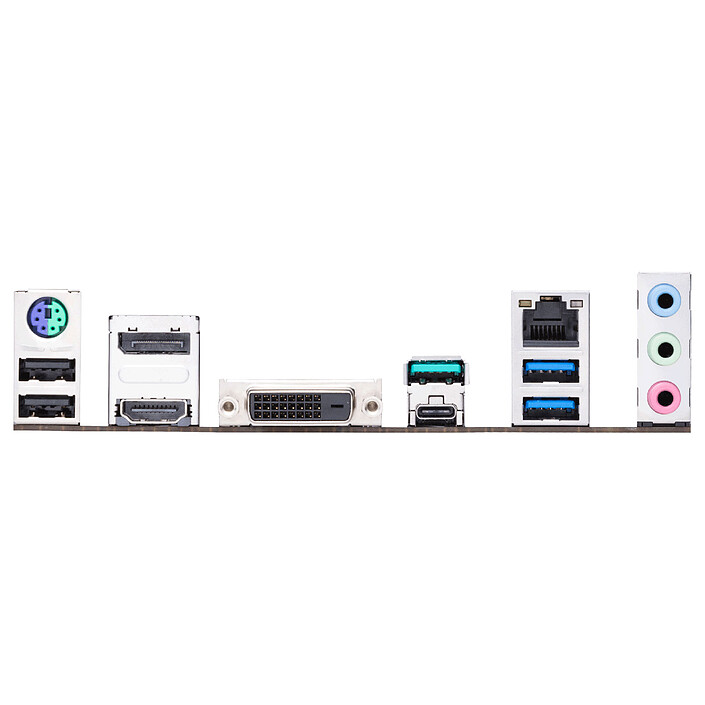

Rear panel connectors

1 X HDMI Female
1 X DVI Female
1 X DisplayPort Female
1 X USB 3.1 Type C
1 X USB 3.1
2 X USB 3.0
2 X USB 2.0
1 X RJ45 Female
1 X MiniDin 6 Female (PS/2)
3 X 3.5mm Jack Female Stereo

Additional connectors

2 X LED RGB connector(s)
2 X Addressable LED RGB connector(s)
TPM
Internal S/PDIF
Front panel audio
1 X +12V (Power supply P8)
1 X ATX 24 Pin
Serial (RS-232)
2 X Internal USB 2.0
2 X Internal USB 3.0
Thunderbolt

Physical characteristics

Motherboard format

Micro ATX

Length

244 mm

Width

244 mm

Equipment

Advanced overclocking features

No

Use

Gamer
Multimedia
Office

LED

Yes

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 24 Mar 2021

Customer review
Global rating
10/10
based on 1 review Editorial and moderation guide
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • 0%
  • by EmilioR
    Posted on 22 Aug 2021
    Bought on 8 Aug 2021 from LDLC
    Number of reviews: 3 Average rating: 10

    Quick swap, easy activation!

    I recently swapped my old asus motherboard for the Prime h570M-Plus. After doing some research on how to swap a motherboard and asking a professional for advice, I decided to do it myself. The result is very convincing: after a little trick in the BIOS to change the way of booting, the motherboard recognized my OS and I was able to reconnect my other disks without any data loss. Very soon after, my windows license was easily reactivated by going through the "activation" menu in the settings and the PC is operational again!
    The only problem is that an extra USB 3.0 socket on the rear panel would have been nice.
