Pictures may differ from actual products

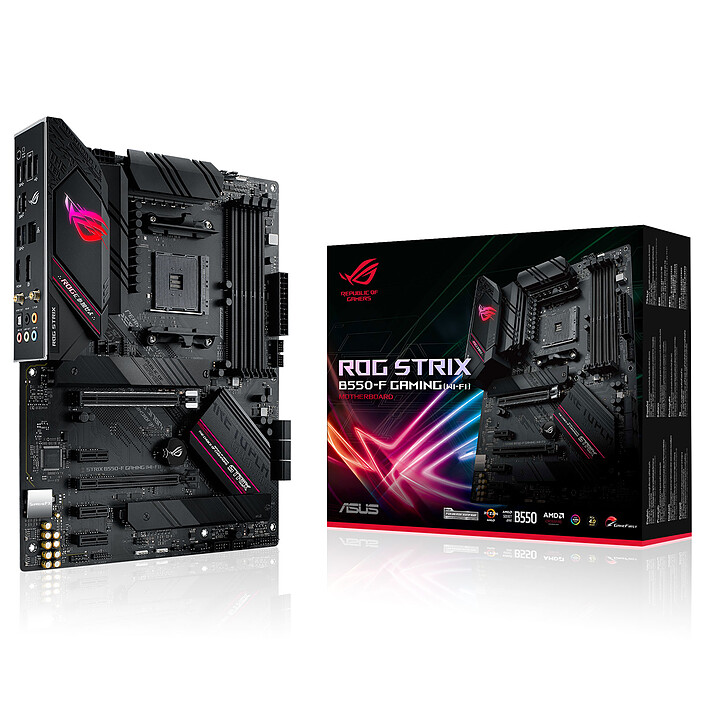

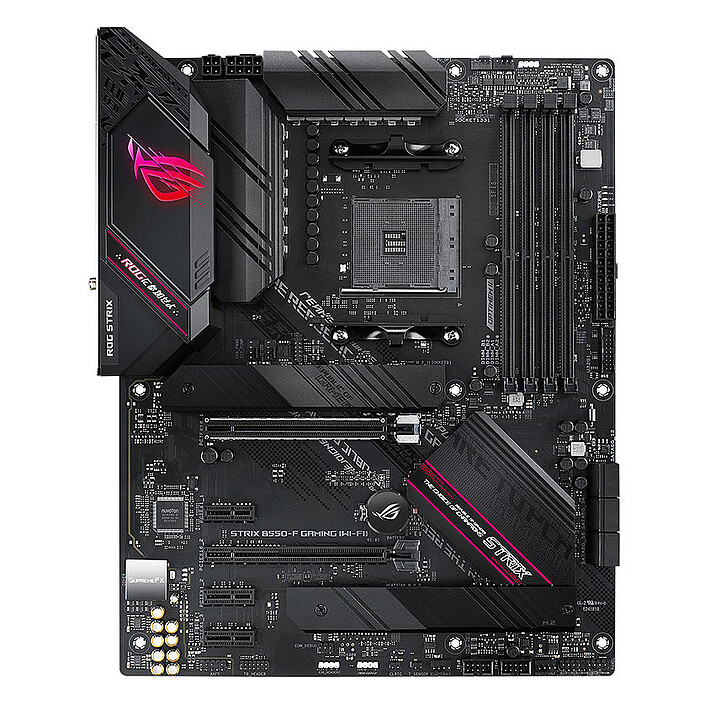

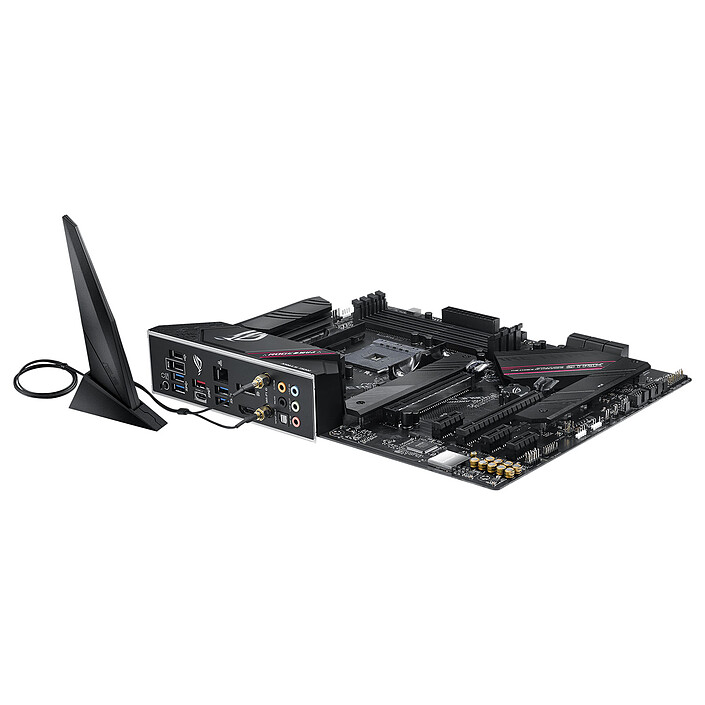

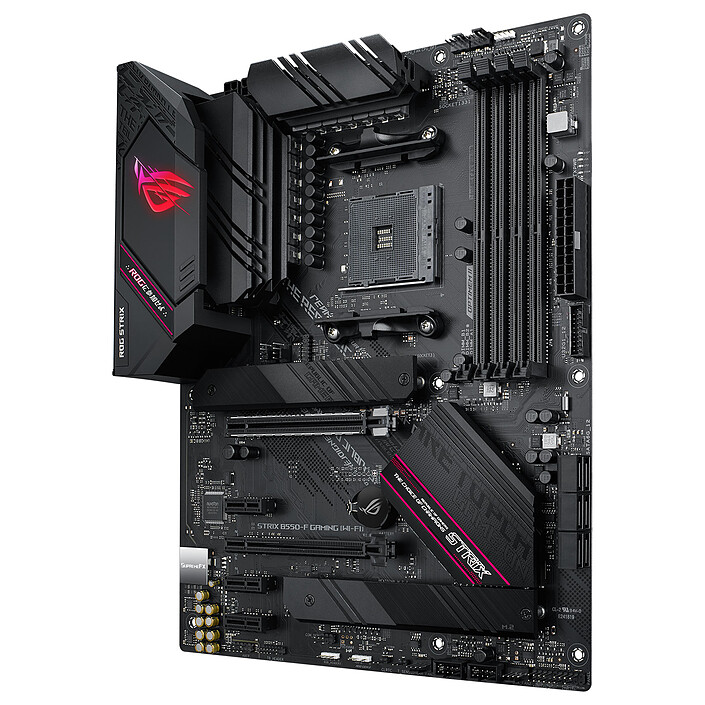

Ready to host the 3rd generation AMD Ryzen processors (named Core Matisse), the ASUS ROG STRIX B550-F GAMING (WI-FI ) motherboard is ideal for designing a powerful and balanced gaming PC. The PCI-Express 4.0 support takes you to new heights. With support for DDR4 RAM up to 128 GB, PCI-Express 3.0 graphics cards, M.2 PCIe 4.0 4x drives, the ASUS ROG STRIX B550-F GAMING (WI-FI) motherboard takes advantage of the latest AMD B550 chipset.
Enjoy powerful overclocking, power savings, digital power supply, fan control, and network and audio settings better suited to your needs. Better performance means smoother gameplay... and more chances to win! With an overclocking (OC) design, UEFI BIOS, and intuitive OC utility that is second to none, you'll enjoy unparalleled performance, combined with a unique cooling system that ensures your system never overheats.
With two M.2 PCIe slots, one of which is 4.0 standard, the ASUS ROG STRIX B550-F GAMING (WI-FI) motherboard supports up to two NVMe SSDs to boost the performance of your gaming PC. You get the fastest data transfer speeds on the 3rd generation AMD Ryzen platform.
The excellent performance of the ROG STRIX B550-F GAMING (WI-FI) is enhanced by the RGB backlighting on the motherboard and the presence of 3 RGB headers, one of which can be addressed. The possibilities offered by the Asus software allow you to customise your gaming setup. The two second generation addressable RGB connectors (with backwards compatibility) allow you to detect the number of addressable LEDs on the device and customise them individually.
Select your criteria
General information |
Product name |
ASUS ROG STRIX B550-F GAMING (WI-FI) |
Brand |
ASUS | |
Model |
90MB14F0-M0EAY0 | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B550 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 4400 MHz | |
| DDR4 4133 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4800 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 5000 MHz | ||
| DDR4 5100 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 16x (x4) |
| 1 X PCI Express 4.0 x16 | ||
Number and Type of slots |
3 X PCI Express 3.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
SupremeFX S1220A |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel i225-V |
Network standard(s) |
Wi-Fi 6 AX | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.1 | ||
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

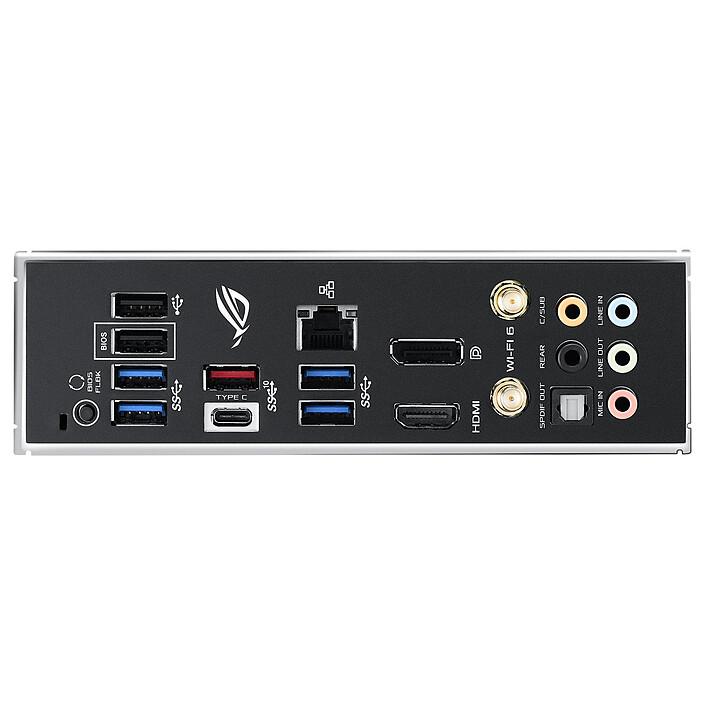

Rear panel connectors |
2 X SMA Female |
| 5 X 3.5mm Jack Female Stereo | ||
| 1 X Digital audio S/PDIF Optical | ||
| BIOS Flash Update | ||
| 1 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 4 X USB 3.0 | ||
| 2 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
Additional connectors |
2 X Internal USB 3.0 | |
| 4 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 1 X +12V (Power supply P8) | ||
| 1 X +12V (Power supply P4) | ||
| 1 X Addressable LED RGB connector(s) | ||
| 2 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
| Multimedia | ||
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASUS products
Product referenced on 16 Jun 2020
Bought to replace an Asrock B450 steel legend that gave up the ghost after 3 years of loyal service. Works perfectly, installation and compatibility impeccable.
Payment from the Ivory Coast and delivery to the forwarding agent without a hitch by LDLC.
I am very pleased with my purchase.
The card has 2 M2 ports, 6 SATA sockets, 1 PCIE 16X, 1 PCLE 4X, 3 PCIE 1X, but you have to read the ASUS manual to be sure!The use of the second M2 port disables 2 SATA ports The use of the PCIE in 4X disables the three PCIE 1X A card of more than 200 euros with just two PCIE slots is not there I think that a reseller who wants to be premium should better check the information it includes in the technical specifications of products sold
I bought this motherboard mainly for gaming use, so far I have nothing to complain about, everything works perfectly and the associated utilities are pretty cool (RGB management, bios upgrade interface, additional software). The PCIe 4 support is a big plus to accommodate new generation components. The 6 FAN PWN sockets are useful to ventilate the tower and all the connectors on the front panel are recognised. I have also updated the BIOS via USB so that the motherboard can recognize AMD RYZEN 3000 processors. I am very pleased with the quality of the product and the service I received from LDLC, and I am very pleased with the service I received from LDLC. I am very pleased with the quality of the product and the service I received from LDLC.
Once again I take an asus motherboard and what a great help with the assembly with its leds, I had not plugged my graphics card we can easily find the problem bios is very well built and wifi is very good invoicea beautiful card full of features, nothing to complain about
Very good quality motherboard with a good number of ports with dual nvme and pcie slots, one of each in 4th generation for high performance "parts" (personally use for a corsair MP600 and a rtx3080). I have to say that I regret the lack of internal usb type C port (to connect a front port). the bios may be too old to work perfectly with a new rtx 3000 generation. blue screen and forced reinstallation of the rtx driver until the installation of a more recent driver for my part.
Coupled with a Ryzen 5 5600x
+ 4x8GB of ram in CL18 - 3600MHZ from Corsair (Vengeance RGB version)
No problem to update the BIOS thanks to the Asus system: Bios Flashback
No need to put any processor or ram, you just have to power the motherboard with the power supply.
- We go to the Asus website, we take the last BIOS compatible for the RYZEN 5000. (to date it is the version 1202)
- We flash a USB key in FAT32, we copy the BIOS on it.
- On the back of the motherboard there is a specific USB port, framed in white, with BIOS written on it, you put the USB key here.
Just press the button next to it for 3 seconds, a small LED indicates that the flash starts, it lasts a few minutes and when it's over the LED goes out.
That's it!
Processor recognized right away, RAM in XMP profile recognized.
Perfect! And Asus is currently refunding 25 euros...
I think it looks great, it is recognized in the iCue software from Corsair, which allows me to configure the LEDs on the top left of the ROG Strix logo.
