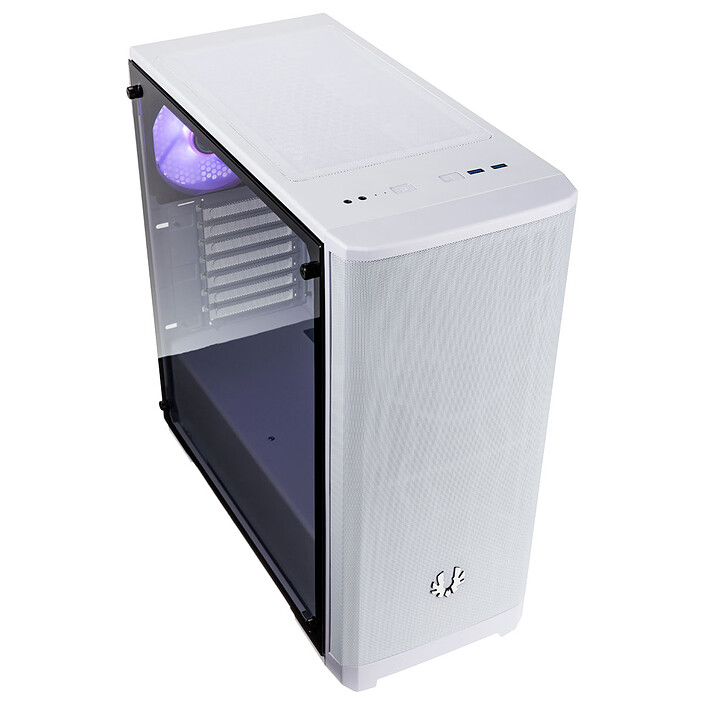

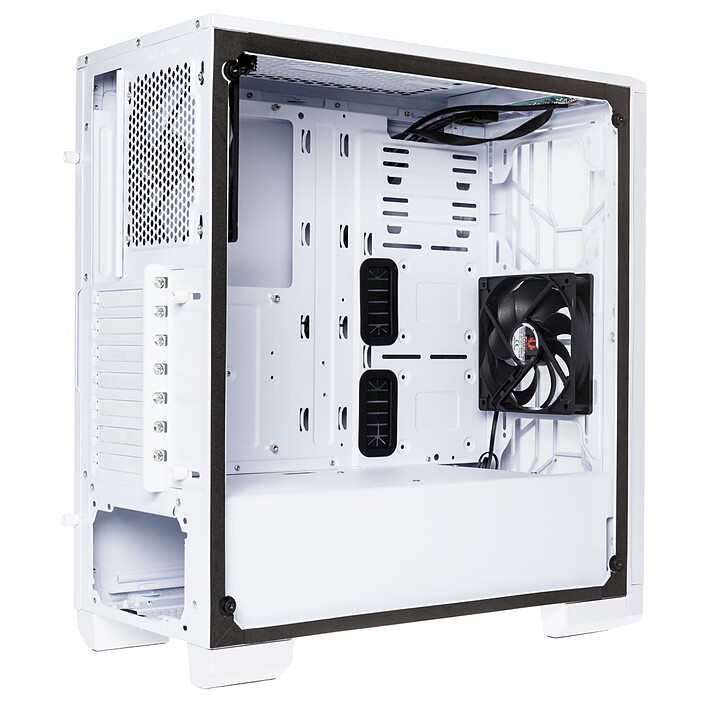

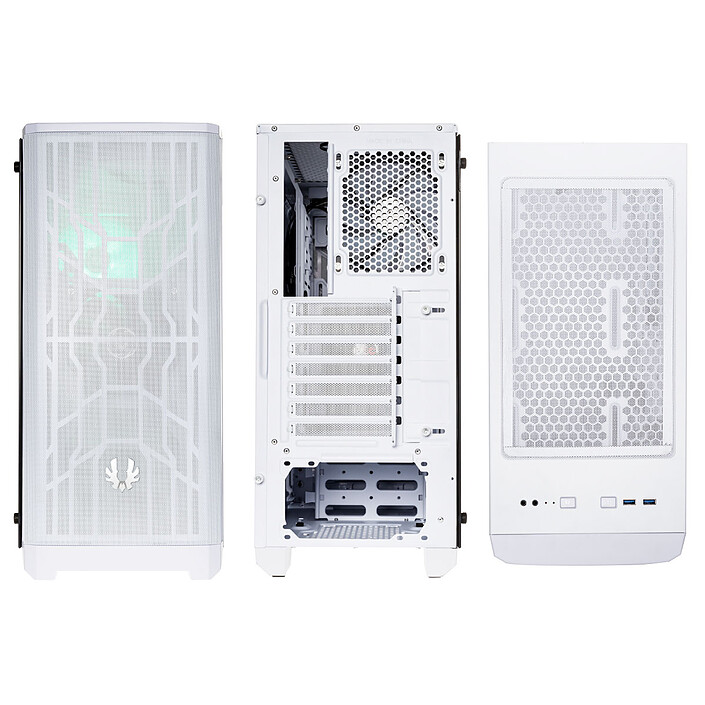

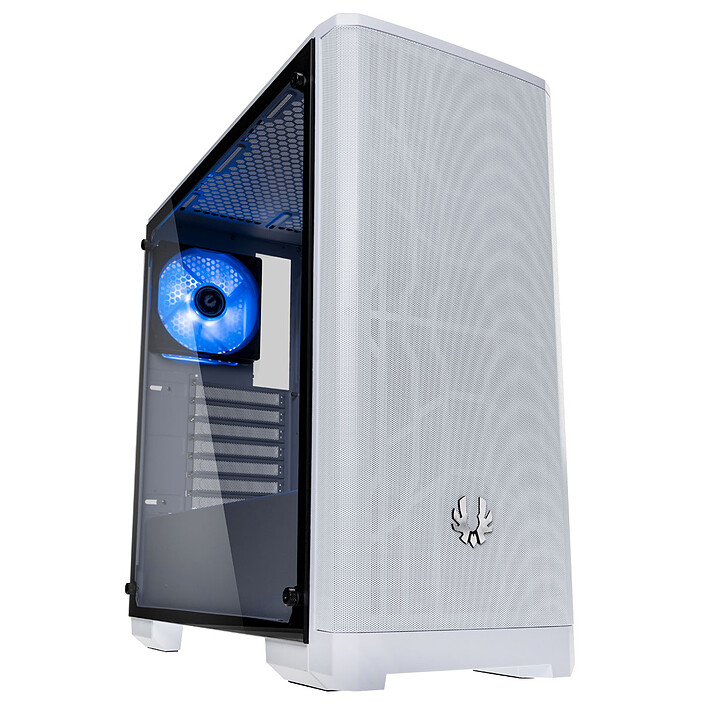

BitFenix Nova MESH TG (White)
Medium tower case with tempered glass centre and mesh front
Last price 119€95When simplicity is effective
With its tempered glass window, mesh front panel and numerous fan slots, the BitFenix NOVA MESH TG mid-tower case has it all! It will ideally host your various components and will offer compatibility with the RGB synchronization of your motherboard.
An environment of choice
The BitFenix NOVA MESH TG features a 4mm thick tempered glass side window and a mesh front panel for efficient ventilation and a view of your front fans. Enjoy the ideal volume to accommodate an E-ATX, ATX, Micro-ATX or Mini ITX motherboard, a 340 mm long graphics card, a 160 mm long power supply and a 160 mm high CPU fan. You can also install up to five 2.5" disks and benefit from a practical cable management system with 23 mm of space behind the motherboard.
Optimised cooling
For optimal performance, this BitFenix case offers 6 fan slots and support for watercooling. Two fans are already installed, one of which is RGB compatible with ASUS, MSI, Gigabyte or ASRock RGB synchronisation. Benefit from efficient cooling, enjoy the effective work of the removable dust filters and install your equipment with peace of mind!
Main features :
- Medium tower case
- 4mm tempered glass side window
- Support for E-ATX, ATX, Micro-ATX and Mini ITX motherboards
- Maximum power supply length: 160 mm
- Maximum fan height: 160 mm
- Maximum graphics card length: 340 mm
- Mesh front panel
- 6 fan slots (1 x 120mm RGB +12V 4Pin fan + 1 x 120mm fan included)
- Syncable lighting with motherboard (ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion 2.0, ASRock Polychrome RGB)
- Connectivity: 2 x USB 3.0, audio (microphone+headset)
- Number of bays: 3 x 2.5" and 2 x 2.5/3.5
- 7 PCI expansion slots
- Watercooling compatibility
- Dimensions: 206 x 460 x 437 mm
- Weight : 7 kg
General information |
Product name |
BitFenix Nova MESH TG (White) |
Brand |
BitFenix | |
Model |
BFC-NVM-300-WWGKW-RP | |
Main characteristics |
Graphic card max. length |
340 mm |
Max height CPU fan |
160 mm | |
Power supply max. length |
160 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Office | ||
Material |
Plastic | |
Tempered glass | ||
Steel | ||
Motherboard format |
ATX | |
E-ATX | ||
Micro ATX | ||
Mini ITX | ||
Power supply supplied |
No | |
Design |
Screwless fixing system |
No |
Case color |
White | |
Front color |
White | |
Dust filters |
3 | |
Glass |
Yes | |
Tempered glass |
Yes | |
LED RGB |
Yes | |
ARGB LED |
No | |
Water cooling compatible |
Yes | |
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of visible 3.5" slots |
0 | |
Number of invisible 3.5" slots |
0 | |
Number of 2.5" slots |
3 | |
Number of 2.5"/3.5" slots |
2 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Front connectivity |
Location of expansion ports |
Top |
Connector(s) available |
2 X USB 3.0 | |
Headphone (3.5mm Jack Female) | ||
Microphone (3.5mm Jack Female) | ||
Cooling |
Number of rear fan(s) slots |
1 X 120mm |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
2 X 140mm | |
3 X 120mm | ||
Quantity of front fan(s) supplied |
1 | |
Number of side fan(s) slots |
None | |
Number of above fan(s) slots |
2 X 120mm | |
Quantity of above fan(s) supplied |
0 | |
Number of underneath fan(s) slots |
None | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
240mm radiator | ||
280mm radiator | ||
360mm radiator | ||
Front AIO slot(s) |
240mm radiator | |
280mm radiator | ||
360mm radiator | ||
Above AIO slot(s) |
240mm radiator | |
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
206 mm |
Height |
460 mm | |
Depth |
437 mm | |
Weight |
7 kg | |
Volume |
41.41 l | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all BitFenix products
Product referenced on 23 Aug 2019
