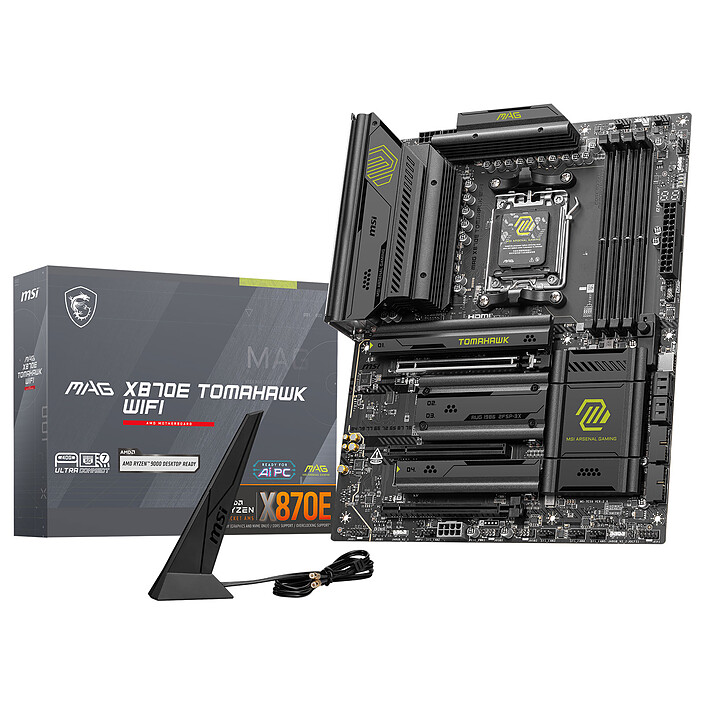

The MSI MAG X870E TOMAHAWK WIFI motherboard is powered by the AMD X870E chipset, which supports AMD Ryzen processors on socket AM5, specifically the 7000/8000/9000 series. Part of the MSI MAG (MSI Arsenal Gaming) range, the MAG X870E TOMAHAWK WIFI will be the heart of your gamer PC thanks to its support for graphics cards and PCI-Express 5.0 standard M.2 NVMe SSDs for enhanced performance.
When it comes to networking, the MSI MAG X870E TOMAHAWK WIFI boasts full connectivity with a 5 GbE LAN port and Wi-Fi 7 / Bluetooth 5.4 for wireless connectivity. For data transfer, the motherboard has two USB4 40 Gbps ports in addition to USB 3.1 and 3.2 ports.
The high frequencies of AMD Ryzen processors are a real advantage when it comes to gaming. Choose the right components and design a high-powered Gaming PC that's latency-free and ready when you are. Get the edge over your opponents and reach new heights with AMD Ryzen 9000/8000/7000 processors and AMD AM5 motherboards.
The AMD Ryzen 9000 processors deliver performance in every area. They will enable you to create faster, achieve your objectives more quickly and save time all the time. From 3D rendering to exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Select your criteria
General information |
Product name |
MSI MAG X870E TOMAHAWK WIFI |
Brand |
MSI | |
Model |
MAG X870E TOMAHAWK WIFI | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8400 MHz | |
| DDR5 8200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7400 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x16 (x1) | |
| 1 X PCI Express 4.0 x16 (x4) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC4080 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8126 |
Network standard(s) |
5 Gbps Gigabit Ethernet (5 GbE) | |
| Bluetooth 5.4 | ||
| Wi-Fi 7 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 2 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |
Rear panel connectors |
BIOS Flash Update | |
| 4 X USB 2.0 | ||
| 3 X USB 3.0 | ||
| 2 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 2 X SMA Female | ||
| 1 X HDMI Female | ||
| 1 X Digital audio S/PDIF Optical | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 2 X USB4 (Type-C) | ||
| 1 X RJ45 Female | ||
Additional connectors |
Chassis intrusion | |
| 1 X Internal USB 3.2 Type C | ||
| 4 X Internal USB 3.0 | ||
| 4 X Internal USB 2.0 | ||
| 1 X PCI Express 8 Pin | ||
| Front panel audio | ||
| 3 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
304.8 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
MSI Computer Europe B.V |
Postal address |
Science Park Eindhoven 5706 5692 ER Son, the Netherlands | |
Electronic Address |
gpsr@msi.com |
See all MSI products
Product referenced on 16 Jan 2025
I needed a powerful motherboard for a high-end PC. This CM totally fulfils its role, with very powerful M2 ports and efficient heat sinks. No unnecessary RGB, just efficiency. The reinforced GPU port is also a plus, given today's GPUs. The 5gbs ethernet port is also a big plus if you have fibre optics. The ability to have two M2s in X4 (you have to disable USB 4 for the second M2 port) is also a big plus!
Easy-to-handle card, perfect for all configurations. Works perfectly with native equipment. Ports are well distributed, making installation easy.
Seems to come from the motherboard or driver compatibility problem with Windows.
Ramtest carried out, ram working fine
Cpuburn carried out no problem.
The PC locks at regular intervals, especially when idle.
Or when you go from an intensive task to not having much load.
Even just launching the taks manager sometimes causes a problem.
No flashy RGB here! This motherboard is sober and efficient.
My choice was guided by its 4 NVMe slots! Having your main drive on a PCIe gen5 4x slot makes loading times ... absent XD! A word of warning though: the description claims 2 NVMe gen 5 4x slots, but using both simultaneously will disable the USB4 ports on the back of the motherboard, which isn't exactly optimal if you're using USB4 standard peripherals... I opted for a single gen5 4x slot + 2 others in gen4 4x and it does the job!
It was equipped with a Ryzen9 9950X3D and 64G of 6000MHz CL30 DDR5 and I'm delighted with the performance of this configuration. However, be careful when choosing RAM: make sure it's EXPO-compatible (ram compatible AMD). I had to boot up once with just one strip to get to the BIOS and activate the EXPO profile before restarting with both strips recognised at the correct frequency in the BIOS.
It's a bit expensive for a motherboard, especially as it doesn't make the biggest difference to other chipsets. But it fulfils its role perfectly. Coupled with a 9800X3D and 2x32GB 6000 CL30. no worries.
A word of warning though: the motherboard needs to be powered by an additional PCIE at the very bottom. If you're using the 4xPCIE to 12V-2x6 adapter for a 5090, make sure your power supply has more than 4 PCIE connectors.
