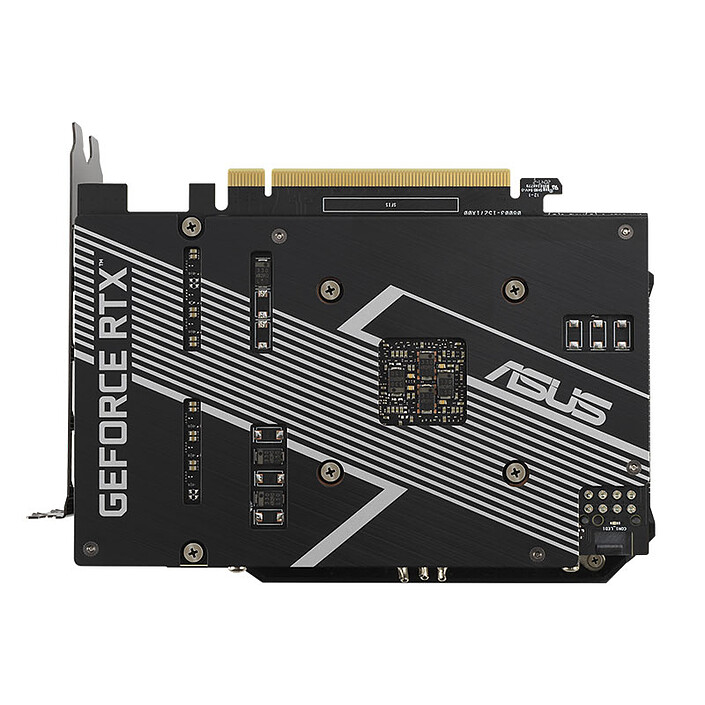

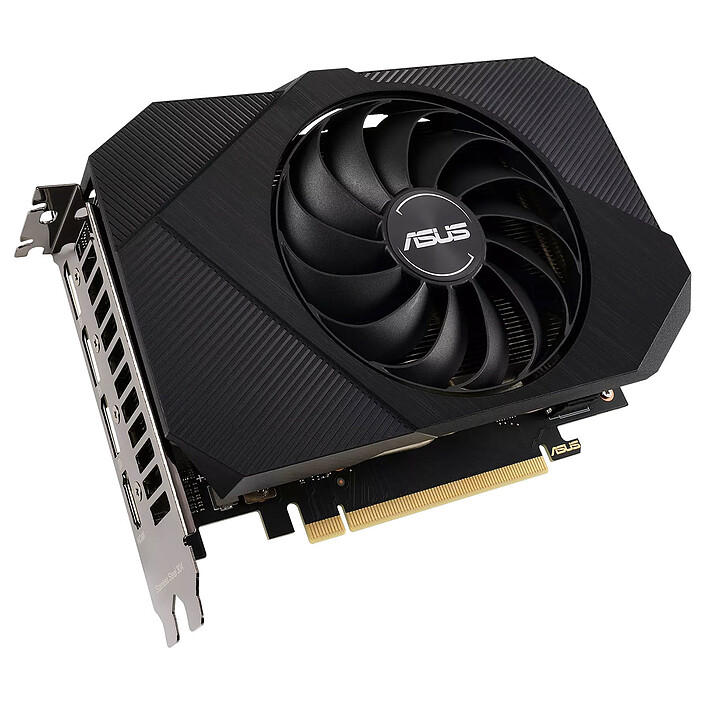

With the GeForce RTX 3060, NVIDIA makes the high performance of Ampere graphics cards even more accessible. The new GeForce RTX 3060 is the ultimate in graphics performance, smoothness, and realism, allowing you to enjoy the latest PC games to the fullest. All you have to do is dive into the action and get fully immersed in the game. The ASUS Phoenix GeForce RTX 3060 V2 LHR graphics card features 12 GB of next-generation GDDR6 video memory. This model features high operating frequencies and an improved cooling system for long-term reliability and performance.

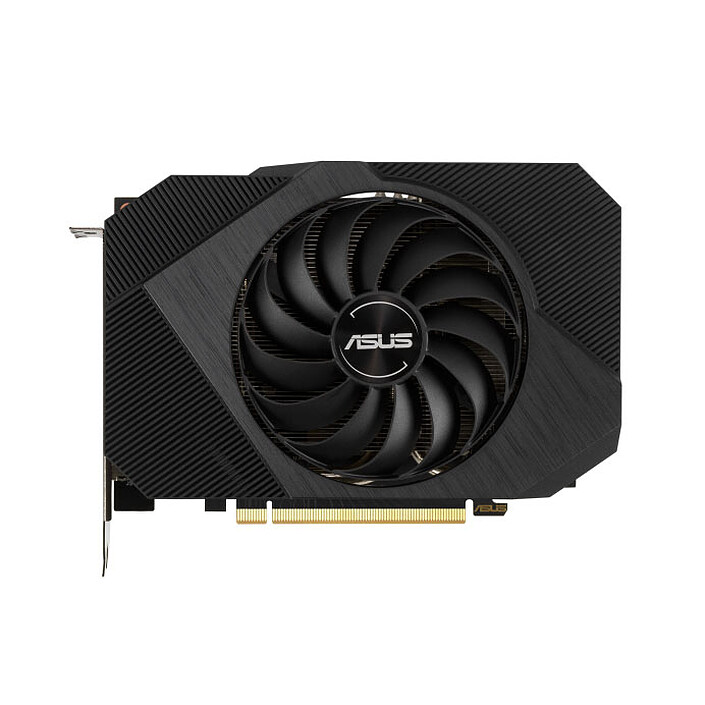

The ASUS Phoenix GeForce RTX 3060 12 GB (LHR) features a unique large fan that takes advantage of the Axial-tech fan design with dual ball bearings. Each card is manufactured using the fully automated Auto-Extreme Technology manufacturing process and subjected to a 144-hour gaming stress test.
Thanks to improvements in the new Ampere architecture, 2nd generation NVIDIA RTX graphics cards perform even better than previous generation graphics cards. PC games are more beautiful, more immersive, and smoother than ever before. 2nd generation RT cores deliver up to 2x the performance of previous generation cards. 3rd generation Tensor cores deliver up to 2x the performance and the new stream multiprocessors deliver 2x the FP32 performance!
Based on the phenomenal capabilities of AI, NVIDIA's Deep Learning Super Sampling (DLSS) is a revolutionary rendering technology that gives you a whole new experience.DLSS is a revolutionary rendering technology that brings you a whole new level of visual fidelity using the AI-dedicated Tensor Core processors in GeForce RTX GPUs. DLSS leverages the power of an optimized deep neural network to accelerate frame rates while generating stunning visuals with unparalleled sharpness. This significant performance boost allows gamers around the world to maximize ray tracing parameters and increase output resolutions.
Steal the show from the best streamers by streaming your games with gorgeous graphics and smooth rendering. Next-generation hardware encoding and decoding lets you capture your best moments in unparalleled detail. The all-new NVIDIA Broadcast application takes your livestreams to the next level with powerful AI capabilities that enhance audio and video quality with advanced effects like virtual background, automatic webcam cropping, and microphone noise suppression. GeForce RTX 30 Series GPUs provide the graphics performance and image quality you need to present yourself to your audience at your best, every time.
Select your criteria
General information |
Product name |
ASUS Phoenix GeForce RTX 3060 V2 (LHR) |
Brand |
ASUS | |
Model |
90YV0GB4-M0NA10 | |
Graphics chipset |
Graphics chipset |
NVIDIA GeForce RTX 3060 |
GPU brand |
NVIDIA | |
Chipset frequency |
1320 MHz | |
Boosted frequency |
1807 MHz | |
Overclocked |
No | |
Number of GPU |
1 | |
Bus |
PCI Express 4.0 x16 | |
Memory |
Video memory size |
12 GB |
Memory interface |
192 bit(s) | |
Video memory frequency |
15000 MHz | |
Memory type |
GDDR6 | |
Architecture |
Stream processors |
3584 |
Direct X support (version) |
12 | |
Technical specifications |
Multi-GPU |
None |
Display |
HD Ready |
Yes |
4K UHD resolution(s) |
Yes | |
VR Ready (virtual reality) |
Yes | |
VirtualLink compatible |
No | |
Connectivity |
Video outputs |

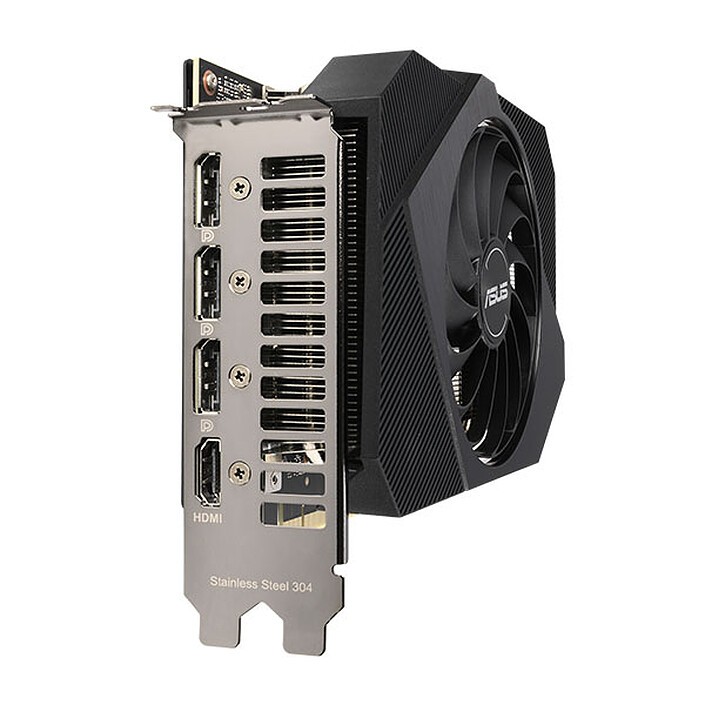

3 X DisplayPort Female |
| 1 X HDMI Female | ||
Number of monitor |
4 | |
HDMI standard |
HDMI 2.1 | |
DisplayPort standard |
DisplayPort 1.4a | |
Power connector(s) |
1 X PCI Express 8 Pin | |
Design |
Cooling type |
Active (fansink) |
Consumption |
180 W | |
Low profile |
No | |
Format |
Dual Slot | |
Number of PCI slots |
2.55 | |
LED |
No | |
LED RGB |
No | |
Length |
177 mm | |
Width |
128 mm | |
Thickness |
51 mm | |
Use |
NVIDIA RTX Gamer | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ASUS products
Product referenced on 2 May 2022
The card does the job but the fan is its Achilles heel. As long as it's working it's noisy... then one day it stops working and to top it all off it's super difficult to change. Out of 8 cards bought of this model, 3 had fan problems in less than a year. Too bad ASUS we were used to better!
