FSP Twins PRO 500W
Redundant power supply 500W ATX12V / EPS12V 80PLUS Gold
Last price 549€95

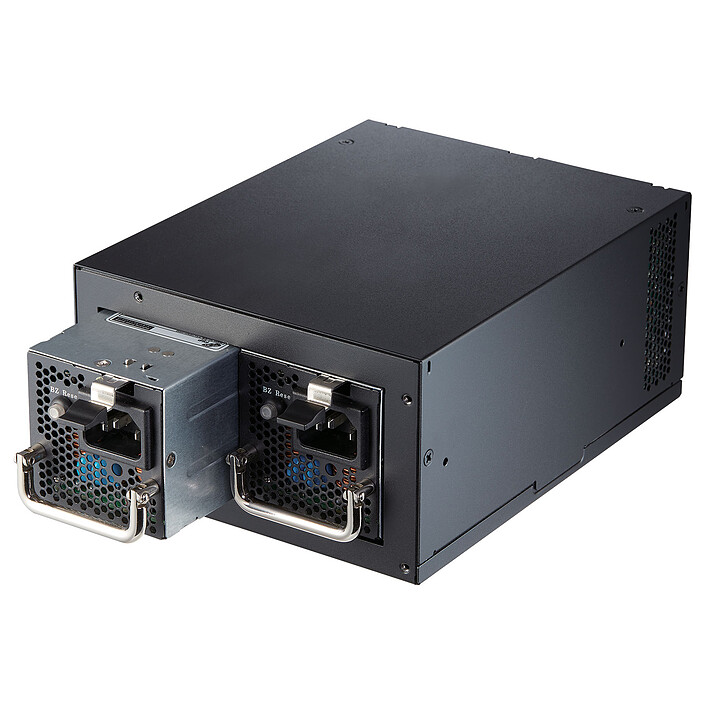

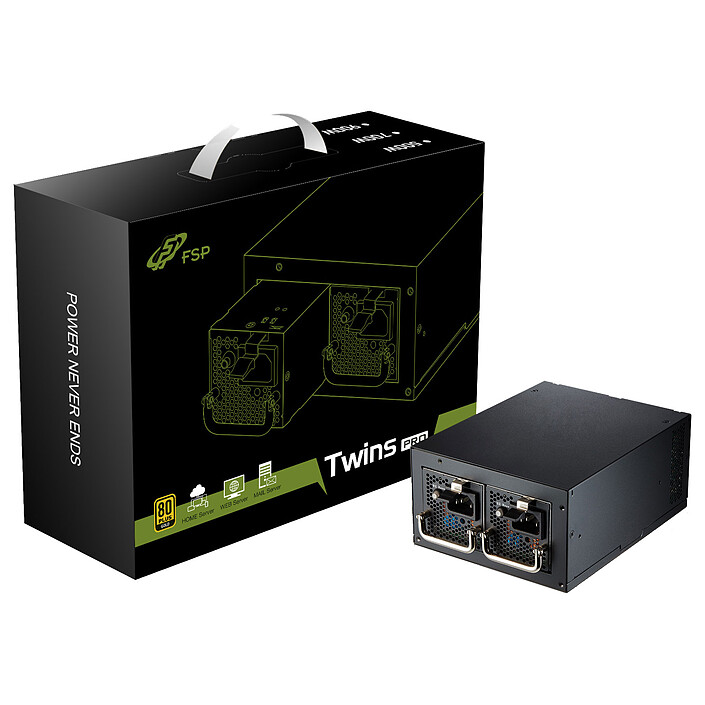

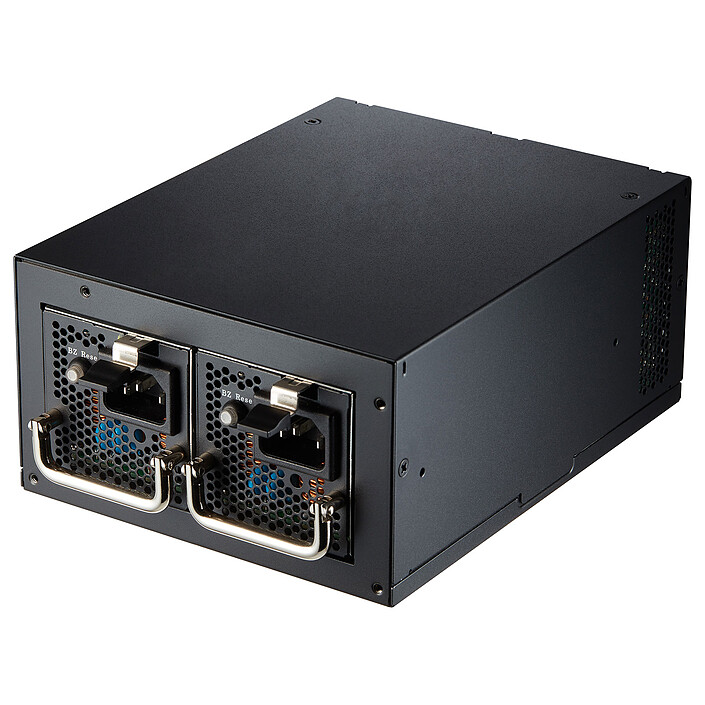

FSP Twins PRO: Redundant power supply in ATX format
TheFSP Twins PRO 500W redundant power supply allows for reliable power supply of a server. This 80PLUS Gold certified 500 Watt FSP power supply offers up to 90% energy efficiency depending on the load. In the event of a failure of one of the two power supplies, the other will immediately take over to ensure the continuity of service essential to a server.
Redundant and hot-swap design
With redundancy in mind, the Twin Pro modular system design is more efficient and works by distributing the load between the two hot-swap modules. If one unit fails, the second unit takes over until a replacement module is inserted. Each unit can be hot swapped and replaced seamlessly and with uninterrupted service.
Real-time monitoring
The Twins PRO series power supplies can be connected to a USB header on your motherboard and synchronised with the FSP Guardian software to monitor input voltages, output voltages, efficiency and many other parameters in real time.
Alerts can be programmed to notify users when certain temperature thresholds are reached.
Select your criteria
General information |
Product name |
FSP Twins PRO 500W |
Brand |
FSP | |
Model |
PPA5008601 | |
Power and Efficiency |
Power |
500 W |
80 PLUS certification |
Yes | |
80 PLUS certification |
80 PLUS Gold | |
Connectivity |
Modular |
No |
Modularity |
Non-modular | |
Power connector(s) |
2 X +12V (Power supply P8 - 2 x P4) | |
| 6 X Serial ATA power supply | ||
| 1 X ATX 24 Pin | ||
| 1 X Molex Floppy Disk 4 Pin Female | ||
| 2 X Molex (4 Pin) Female | ||
| 4 X PCI Express 6 + 2 Pin | ||
Configurator |
PSU-CM compatibility |
+12V P4 |
| +12V P8 | ||
| +12V P4 and +12V P4 | ||
| +12V P8 and +12V P4 | ||
| +12V P8 and +12V P8 | ||
Cooling |
Fan size |
2 X 40mm |
Silent |
No | |
Power supply type (PC) |
Active | |
Design |
Power format |
ATX/EPS |
Power supply standard |
ATX12V | |
| EPS12V | ||
ATX 3.0 |
No | |
Multi-GPU |
None | |
Typical use |
Server | |
Physical characteristics |
Color |
Black |
LED RGB |
No | |
Height |
86 mm | |
Width |
150 mm | |
Length |
190 mm | |
Weight |
2.85 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all FSP products
Product referenced on 22 Mar 2021
