Vivitek DW770UST
DLP WXGA Projector - 3D Ready - 3500 Lumens - Ultra-Short Throw - Vertical Lens Shift - HDMI/VGA/USB/Ethernet - Built-in Speakers
Pictures may differ from actual products
Enjoy the convenience of an ultra-short-throw projector with the DW770UST from Vivitek. Requiring only a small amount of recoil, it's perfect for classrooms and learning.
DLP WXGA Projector - 3D Ready - 3500 Lumens - Ultra-Short Throw - Vertical Lens Shift - HDMI/VGA/USB/Ethernet - Built-in Speakers
Ultra Short Throw for Education
Enjoy the convenience of an ultra-short-throw projector with Vivitek's DW770UST. Requiring only a small amount of recoil, it's perfect for classrooms and learning. It features high quality DLP projection with WXGA resolution, 3500 Lumens brightness and built-in speakers. Easy to install, it features a Vertical Lens Shift (+/- 1.7%) to adjust the optics to suit your room configuration.
Perfect for the world of education
With its DLP projection technology and 3500 Lumens brightness, the Vivitek DW770UST projector is perfect for the education sector. It offers a native WXGA (1280 x 800) resolution and an ultra-short focal length. The latter allows the display of a 100-inch image with only 44 cm of distance. This is ideal for use in environments where space is limited.
Work in the best conditions
Easy to install thanks to the Vertical Lens Shift, this professional projector will perfectly accompany your daily objectives. The projector has HDMI, VGA and USB connectors as well as an Ethernet port. You can also take advantage of network management and monitoring solutions with Crestron RoomView, for example. Finally, the projected content can be accompanied by a soundtrack thanks to the 2 built-in 10 watt speakers.
Main features :
- V3D Ready DLP projector
- Resolution: WXGA 1280 x 800 (native) / UHD 3840 x 2160 (maximum)
- Ultra-short throw: 100-inch image at 44cm from the screen
- Lamp life: 6000 hours (normal mode) / 12,000 hours (eco mode)
- Brightness: 3500 lumens
- Optimised installation: Limited vertical lens shift +/- 1.7%, Keystone V correction +/-40
- Sound power: 2 x 10 Watts

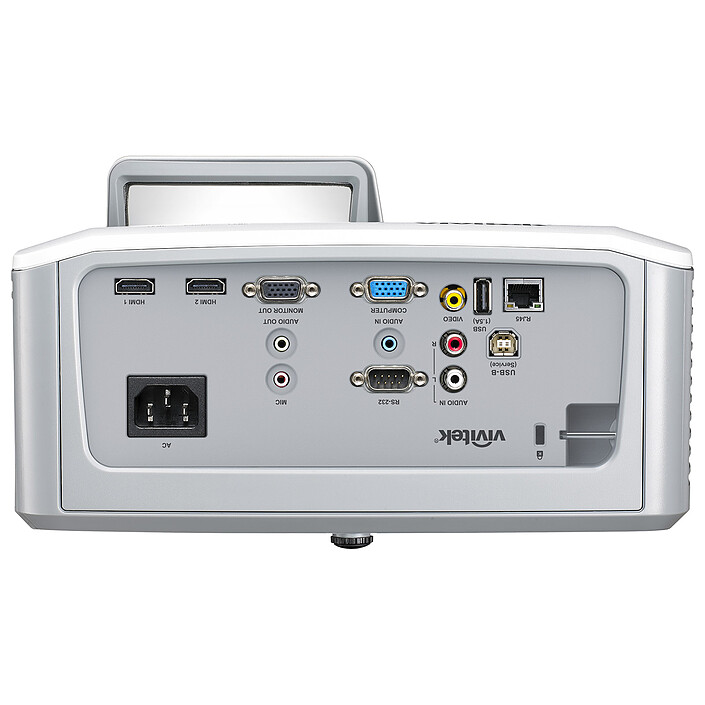

- Connections: HDMI x2, VGA, USB, RJ45, RS232
- Compatible with NovoConnect wireless collaboration solution
- Manufacturer's warranty: 5 years for the projector, 3 years or 2000 hours for the lamp
Select your criteria
General information |
Product name |
Vivitek DW770UST |
Brand |
Vivitek | |
Model |
DW770UST | |
Main characteristics |
Format |
Office |
Light source |
Lamp | |
Technology |
DLP | |
Resolution |
1280 x 800 pixels | |
4K UHD resolution(s) |
No | |
HDR (High Dynamique Range) |
No | |
Display format(s) |
16:10 | |
Brightness |
3500 ANSI lumens | |
Contrast |
10000 /1 | |
Gaming |
Gamer |
No |
Lens |
Lens Shift |
Vertical Lens Shift |
Focal type |
Ultra-short throw | |
Max focal length |
5.1 mm | |
Max throw ratio |
0.35 | |
Autofocus |
No | |
Video Signals |
Supported video resolution(s) |
1080i |
| 1080p | ||
| 720p | ||
| 576p | ||
| 576i | ||
| 480p | ||
| 480i | ||
Supported computer science resolution(s) |
1600 x 1200 pixels | |
| 1280 x 1024 pixels | ||
| 1024 x 768 pixels | ||
| 800 x 600 pixels | ||
| 640 x 480 pixels | ||
3D compatible |
Yes | |
Min vertical frequency |
47 Hz | |
Max vertical frequency |
120 Hz | |
Lamp |
Lamp power |
240 W |
Lamp lifespan |
6000 Hour(s) | |
Lamp lifespan in Eco mode |
12000 Hour(s) | |
Sound level |
Min sound level |
29 dB |
Max sound level |
33 dB | |
Equipment |
With display |
No |
Remote control |
Yes | |
Sound power |
2 X 10 W | |
Network |
Yes | |
Network standard(s) |
Ethernet | |
Smart |
No | |
Android TV |
No | |
Interactive model |
No | |
Connectivity |
Video inputs |
1 X Composite video |
| 1 X VGA (D-sub 15 Female) | ||
| 2 X HDMI Female | ||
Video outputs |
1 X VGA (D-sub 15 Female) | |
Audio input |
1 X Audio stereo (2x RCA Female) | |
| Microphone (3.5mm Jack Female) | ||
| Line IN (3.5mm Jack Female) | ||
Audio outputs |
Line OUT (3.5mm Jack Female) | |
Additional connector(s) |
3D-Sync | |
| 1 X Serial (RS-232) | ||
| Ethernet - RJ45 Female | ||
| USB Type A Female | ||
Physical characteristics |
Width |
287.7 mm |
Height |
122.6 mm | |
Depth |
374.5 mm | |
Weight |
5 kg | |
Power supply |
Consumption |
330 W |
Standby consumption |
0.5 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
